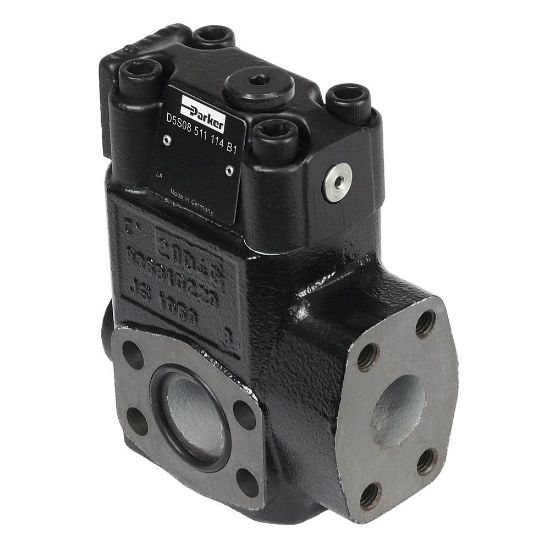

D5S1071511609W30B1

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU D5S1071511609W30B1

$2,188.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pilot Inlet / Drain Locations	Pilot oil line in body: Internal from A
Material	Cast Iron	For Fluid Type	Hydraulic Oil
Function	2-way	Port Size	SAE 1 1/4 Inch
Pilot Inlet	Pilot Oil Line in Body: Internal from A	Maximum Flow Rate	600 lpm
Minimum Opening Pressure	A-B = 1.2 bar	Mounting Position	Unrestricted
Switching Option	Vent Function: Solenoid not Activated, Unpressurized Circulation	Cover	Pilot line Cap: With Vent Function, Internal To B, X = Closed, Y = Open, Z = Orifice 1.2, X-Y = Closed, X1 = Open, Y1 = Closed, VV01 = Open
Maximum Operating Temperature	60 °C	Spool Type	Poppet with Closed Bottom, 15° Chamfer
Sleeve Type	AA=0.95 AC, AB=0.05AC	Seal Material	NBR
Override Functionality	With Manual Override	Body Type	Seat entry A, 2-Port, Y1, X1 = G 1/4 Inch
Input Voltage	110/120 VAC, 50/60 Hz	Product Series	Seat Valve
Mounting Option	Flanged According Sae	Minimum Operating Temperature	-20 °C
Actuation Type	Oil Pilot
