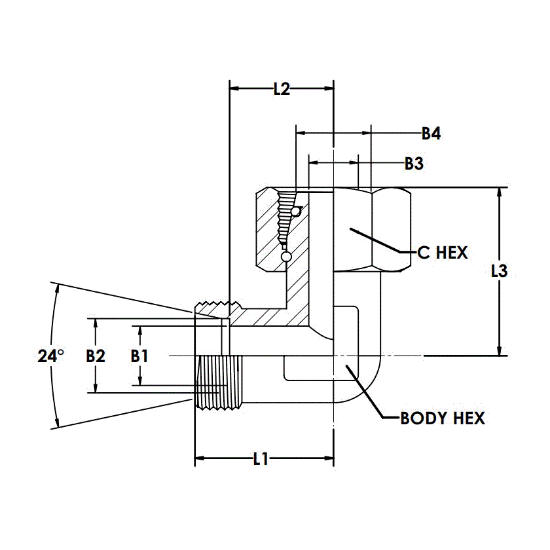

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D6500-L12-L12-X

Brennan D6500-L12-L12-X | Elbow | Series D6500-X | Connection 1 Type Male metric 24 degree DIN Seat | Connection 2 Type Female Metric Swivel Din 24deg

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6500-L12-L12-X

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D6500-X
Material	Steel	Cubic Inch Space	1.898
Shape	90 Degree Angle	Connection 1 Specification	DIN 2353, ISO 8434-1
Type	Elbow	Connection 2 Specification	DIN 2353, ISO 8434-1
Connection 1 Type	Male metric 24 degree DIN Seat	Overall Length L2	17 MM
Overall Length M1	29.4 MM	Connection 2 Tube Size	Light 12 mm Tube OD
Hex Body	17 MM	Overall Length L1	24 MM
Maximum Dynamic Pressure	400 bar	Connection 2 Type	Female Metric Swivel Din 24deg
Connection 1 Tube Size	Light 12 mm Tube OD	Connection 2 Thread Size	M18X1.5
Hex C 1	22 MM	Connection 1 Thread Size	M18X1.5
O-Ring/Seal Material	NBR	Raw Material Type	Steel Forging
Plating	Zinc Nickel
