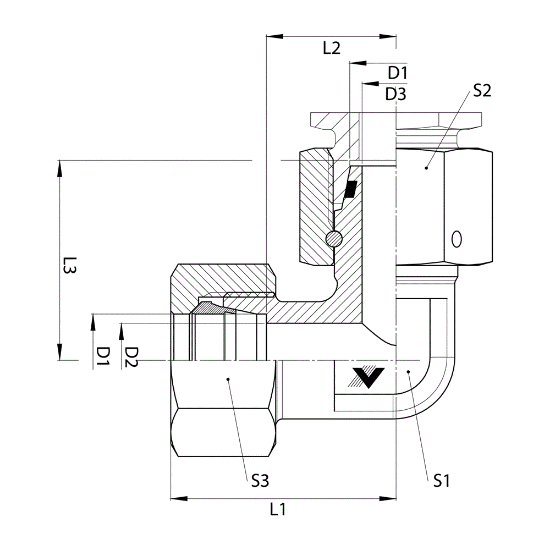

D6500-S10-S10

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6500-S10-S10

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D6500
Material	Steel	Shape	90 Degree Angle
Connection 1 Specification	DIN 2353, ISO 8434-1	Type	Elbow
Cubic Inch Space	2.470	Overall Length M1	17.5 MM
Overall Length L1	34 MM	Connection 2 Type	Female Metric Swivel Din 24deg
Connection 1 Tube Size	Heavy 10 mm Tube OD	Hex C 2	22 MM
Connection 2 Tube Size	Heavy 10 mm Tube OD	Connection 2 Specification	DIN 2353, ISO 8434-1
Centerline Length M2	29.9 MM	Maximum Dynamic Pressure	800 bar
Hex Body	17 MM	Raw Material Type	Steel Forging
Connection 2 Thread Size	M18X1.5	Connection 1 Type	DIN metric tube compression
Hex C 1	22 MM	Connection 1 Thread Size	M18X1.5
Overall Length L2	25 MM	Plating	Zinc Nickel
O-Ring/Seal Material	NBR
