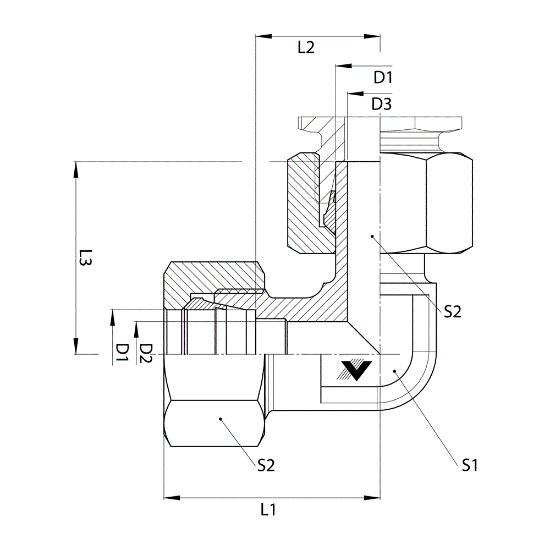

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D6500-SP-L06-L06-SS

Brennan D6500-SP-L06-L06-SS | Elbow | Series D6500-SP | Connection 1 Type DIN metric tube compression | Connection 2 Type Female Metric Standpipe Din24d

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6500-SP-L06-L06-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Elbow
Cubic Inch Space	0.959	Series	D6500-SP
Material	Stainless Steel	Shape	90 Degree Angle
Connection 1 Specification	DIN 2353, ISO 8434-1	Hex Body	12 MM
Connection 1 Type	DIN metric tube compression	Hex C 1	14 MM
Maximum Dynamic Pressure	315 bar	Overall Length M1	12 MM
Connection 2 Thread Size	M12X1.5	Centerline Length M2	26 MM
Connection 1 Tube Size	Light 06 mm Tube OD	Overall Length L1	27 MM
Hex C 2	14 MM	Connection 2 Specification	DIN 2353, ISO 8434-1
Raw Material Type	Stainless Steel Forging	Overall Length L2	19 MM
Connection 2 Type	Female Metric Standpipe Din24d	Connection 1 Thread Size	M12X1.5
Connection 2 Tube Size	Light 06 mm Tube OD
