D6500-SP-S08-S08-X

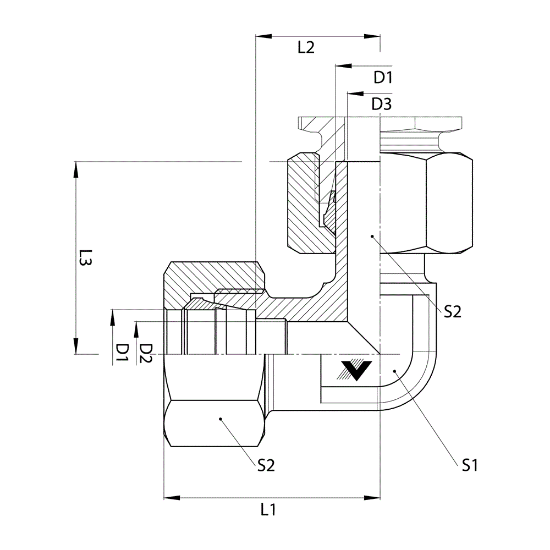

Brennan D6500-SP-S08-S08-X | Elbow | Series D6500-SP-X | Connection 1 Type Male metric 24 degree DIN Seat | Connection 2 Type Female Metric Standpipe Din24d

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6500-SP-S08-S08-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Series	D6500-SP-X	Cubic Inch Space	1.359
Connection 1 Specification	DIN 2353, ISO 8434-1	Maximum Dynamic Pressure	630 bar
Connection 2 Tube Size	Heavy 08 mm Tube OD	Raw Material Type	Steel Forging
Connection 1 Tube Size	Heavy 08 mm Tube OD	Plating	Zinc Nickel
Connection 1 Thread Size	M16X1.5	Connection 2 Specification	DIN 2353, ISO 8434-1
Overall Length L2	17 MM	Connection 1 Type	Male metric 24 degree DIN Seat
Hex Body	14 MM	Overall Length L1	24 MM
Connection 2 Type	Female Metric Standpipe Din24d	Hex C 1	19 MM
Overall Length M1	28 MM	Connection 2 Thread Size	M16X1.5
