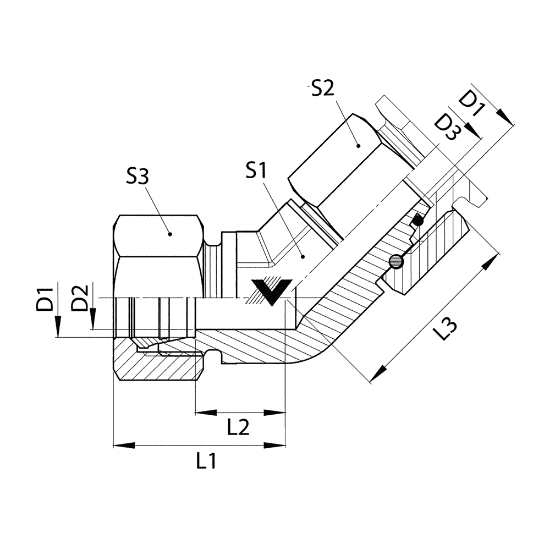

D6502-L12-L12

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6502-L12-L12

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	45 Degree Angle
Series	D6502	Cubic Inch Space	3.085
Connection 1 Specification	DIN 2353, ISO 8434-1	Overall Length M1	12.5 MM
Overall Length L1	27.5 MM	Connection 1 Thread Size	M18X1.5
Connection 2 Tube Size	Light 12 mm Tube OD	Maximum Dynamic Pressure	400 bar
Centerline Length M2	29.389 MM	Raw Material Type	Steel Forging
Plating	Zinc Nickel	Connection 1 Type	DIN metric tube compression
Connection 2 Thread Size	M18X1.5	Hex C 1	22 MM
Hex Body	19 MM	Hex C 2	22 MM
Overall Length L2	19.5 MM	O-Ring/Seal Material	NBR
Connection 1 Tube Size	Light 12 mm Tube OD	Connection 2 Type	Female Metric Swivel Din 24deg
Connection 2 Specification	DIN 2353, ISO 8434-1
