D6502-S30-S30-X

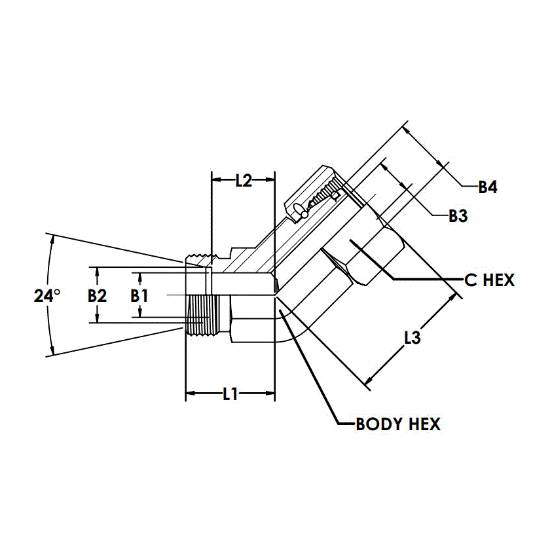

Brennan D6502-S30-S30-X | Elbow | Series D6502-X | Connection 1 Type Male metric 24 degree DIN Seat | Connection 2 Type Female Metric Swivel Din 24deg

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6502-S30-S30-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	45 Degree Angle
Series	D6502-X	Cubic Inch Space	22.445
Connection 1 Specification	DIN 2353, ISO 8434-1	O-Ring/Seal Material	NBR
Plating	Zinc Nickel	Hex C 1	50 MM
Raw Material Type	Steel Forging	Hex Body	50 MM
Connection 1 Type	Male metric 24 degree DIN Seat	Overall Length L2	23.5 MM
Connection 2 Specification	DIN 2353, ISO 8434-1	Connection 1 Thread Size	M42X2.0
Overall Length M1	55 MM	Connection 1 Tube Size	Heavy 30 mm Tube OD
Connection 2 Tube Size	Heavy 30 mm Tube OD	Maximum Dynamic Pressure	420 bar
Connection 2 Type	Female Metric Swivel Din 24deg	Overall Length L1	37 MM
Connection 2 Thread Size	M42X2.0
