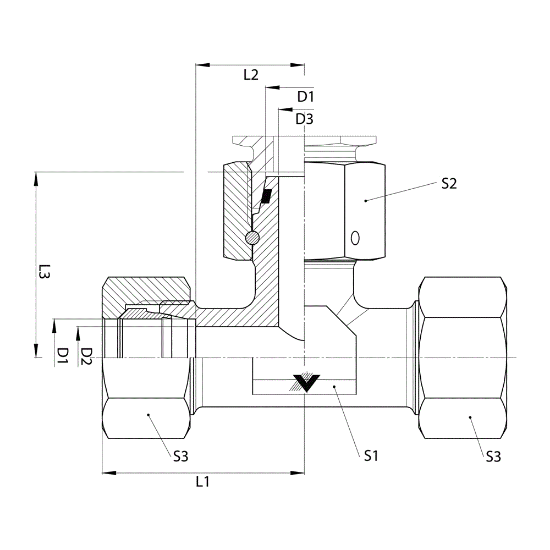

D6600-S16-S16-S16-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6600-S16-S16-S16-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Tee	Connection Type	MBT-MBT-FMS
Weight	1.083 LB	Series	D6600
Style	DIN Fitting	Hex Size 1	30 MM
Thread Size 2	M24 x 1.5	Standard	Prop-65 Warning
Max. Dynamic Pressure	630 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Body Hex	24 MM	Overall Length 3	33 MM
Hex Size 2	30 MM	Tube Size 3	16 MM
End Type 3	Female Metric Swivel DIN 24deg	Tube Size 1	16 MM
Connection Specification 3	DIN 2353, ISO 8434-1	Tube Size 2	16 MM
Connection Specification 2	DIN 2353, ISO 8434-1	End Type 2	DIN Metric Tube Compression
Thread Size 1	M24 x 1.5	Thread Size 3	M24 x 1.5
O-Ring/Seal Material	Viton	Hex Size 3	30 MM
Overall Length 1	43 MM	End Type 1	DIN Metric Tube Compression
Raw Material Type	Stainless Steel Forging	Overall Length 2	43 MM
