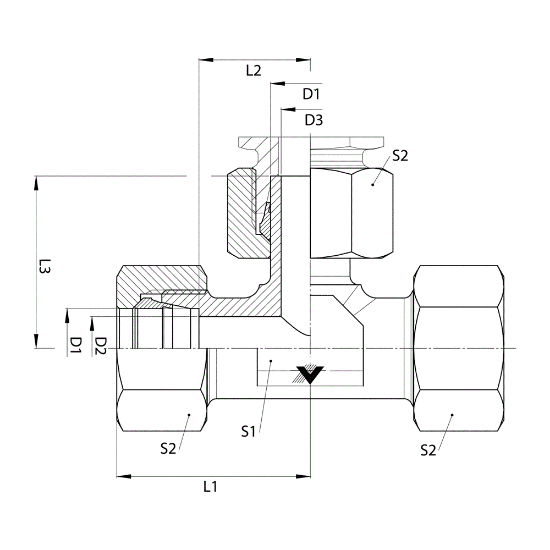

D6600-SP-S14-S14-S14

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6600-SP-S14-S14-S14

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MBT-MBT-FMSP
Weight	0.873 LB	Series	D6600-SP
Style	DIN Fitting	Hex Size 1	27 MM
Thread Size 2	M22 x 1.5	Standard	Prop-65 Warning
Max. Dynamic Pressure	400 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Tube Size 3	14 MM	End Type 2	DIN Metric Tube Compression
End Type 3	Female Metric Standpipe DIN24D	Overall Length 2	40 MM
Overall Length 3	30 MM	Overall Length 1	40 MM
Tube Size 1	14 MM	End Type 1	DIN Metric Tube Compression
Connection Specification 2	DIN 2353, ISO 8434-1	Connection Specification 3	DIN 2353, ISO 8434-1
Tube Size 2	14 MM	Hex Size 2	27 MM
Plating	Zinc Nickel	Thread Size 1	M22 x 1.5
Hex Size 3	27 MM	Raw Material Type	Steel Forging
Body Hex	19 MM	Thread Size 3	M22 x 1.5
