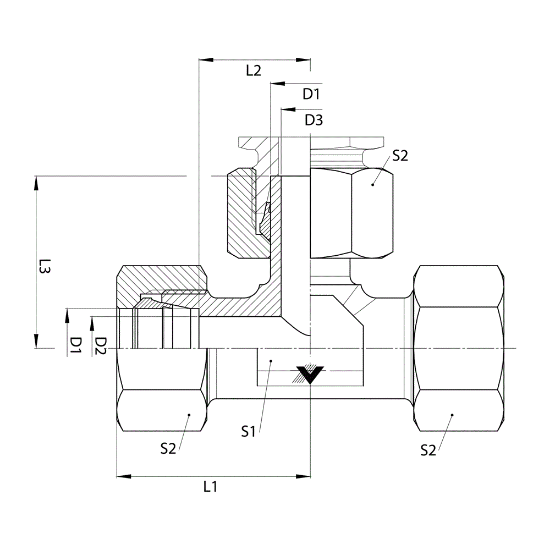

D6600-SP-S14-S14-S14-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6600-SP-S14-S14-S14-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MBT-MBT-FMSP (Body Only)
Weight	0.416 LB	Series	D6600-SP-X
Style	DIN Fitting	Hex Size 1	27 MM
Thread Size 2	M22 x 1.5	Standard	Prop-65 Warning
Max. Dynamic Pressure	400 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Overall Length 2	30 MM	Tube Size 1	14 MM
End Type 2	Male Metric 24 Degree DIN Seat	Overall Length 1	30 MM
End Type 1	Male Metric 24 Degree DIN Seat	Thread Size 1	M22 x 1.5
Body Hex	19 MM	Connection Specification 2	DIN 2353, ISO 8434-1
Tube Size 2	14 MM	Connection Specification 3	DIN 2353, ISO 8434-1
Plating	Zinc Nickel	Raw Material Type	Steel Forging
Thread Size 3	M22 x 1.5	Tube Size 3	14 MM
Overall Length 3	22 MM	End Type 3	Female Metric Standpipe DIN24D
