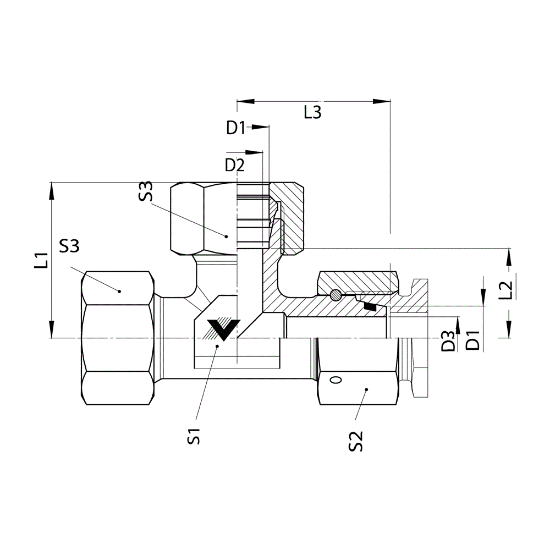

D6602-S30-S30-S30-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6602-S30-S30-S30-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Tee	Connection Type	MBT-FMS-MBT
Weight	3.948 LB	Series	D6602
Style	DIN Fitting	Hex Size 1	50 MM
Thread Size 2	M42 x 2.0	Standard	Prop-65 Warning
Max. Dynamic Pressure	420 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Overall Length 1	63.2 MM	Hex Size 2	50 MM
Tube Size 2	30 MM	Body Hex	41 MM
End Type 2	Female Metric Swivel DIN 24deg	Thread Size 1	M42 x 2.0
Raw Material Type	Stainless Steel Forging	O-Ring/Seal Material	Viton
End Type 1	DIN Metric Tube Compression	Hex Size 3	50 MM
Tube Size 3	M42 x 2.0	Tube Size 1	30 MM
Overall Length 3	49 MM	Overall Length 2	55.5 MM
Thread Size 3	HEAVY 30MM TUBE OD	End Type 3	DIN Metric Tube Compression
Connection Specification 2	DIN 2353, ISO 8434-1	Connection Specification 3	DIN 2353, ISO 8434-1
