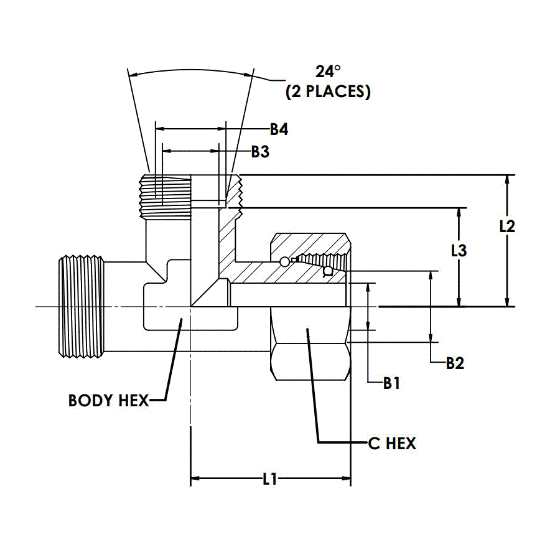

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D6602-S30-S30-S30-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6602-S30-S30-S30-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MBT-FMS-MBT (Body Only)
Weight	1.621 LB	Series	D6602-X
Style	DIN Fitting	Hex Size 1	50 MM
Thread Size 2	M42 x 2.0	Standard	Prop-65 Warning
Max. Dynamic Pressure	420 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Connection Specification 3	DIN 2353, ISO 8434-1	Plating	Zinc Nickel
Tube Size 2	30 MM	Raw Material Type	Steel Forging
End Type 2	Female Metric Swivel DIN 24deg	Overall Length 2	55.5 MM
Overall Length 3	35.5 MM	O-Ring/Seal Material	NBR
Thread Size 1	M42 x 2.0	End Type 3	Male Metric 24 Degree DIN Seat
Body Hex	41 MM	Thread Size 3	M42 x 2.0
Tube Size 3	30 MM	Overall Length 1	49 MM
Connection Specification 2	DIN 2353, ISO 8434-1	End Type 1	Male Metric 24 Degree DIN Seat
Tube Size 1	30 MM
