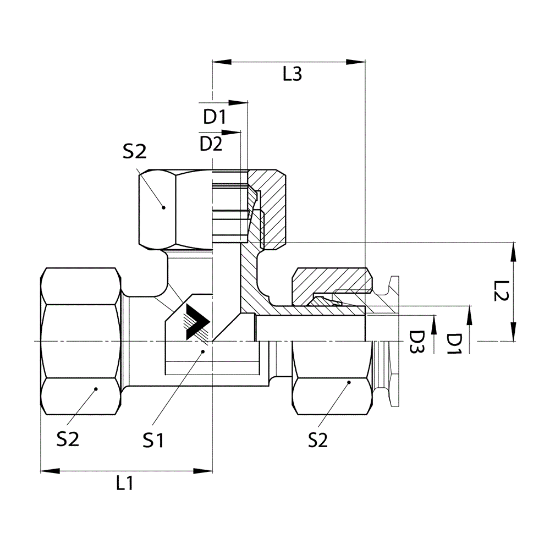

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D6602-SP-S16-S16-S16-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D6602-SP-S16-S16-S16-X

Products specifications

Attribute name	Attribute value
Thread Size 2	M24 x 1.5	Connection Specification 1	DIN 2353, ISO 8434-1
Type	Tee	Standard	Prop-65 Warning
Hex Size 1	30 MM	Max. Dynamic Pressure	400 Bar
Weight	0.555 LB	Style	DIN Fitting
Series	D6602-SP-X	Connection Type	MBT-FMSP-MBT (Body Only)
Material	Steel	Raw Material Type	Steel Forging
Connection Specification 3	DIN 2353, ISO 8434-1	Body Hex	24 MM
Connection Specification 2	DIN 2353, ISO 8434-1	Overall Length 1	33 MM
End Type 1	Male Metric 24 Degree DIN Seat	Tube Size 2	16 MM
Tube Size 3	16 MM	Plating	Zinc Nickel
Tube Size 1	16 MM	Overall Length 3	24.5 MM
End Type 2	Female Metric Standpipe DIN24D	End Type 3	Male Metric 24 Degree DIN Seat
Thread Size 1	M24 x 1.5	Overall Length 2	37 MM
Thread Size 3	M24 x 1.5
