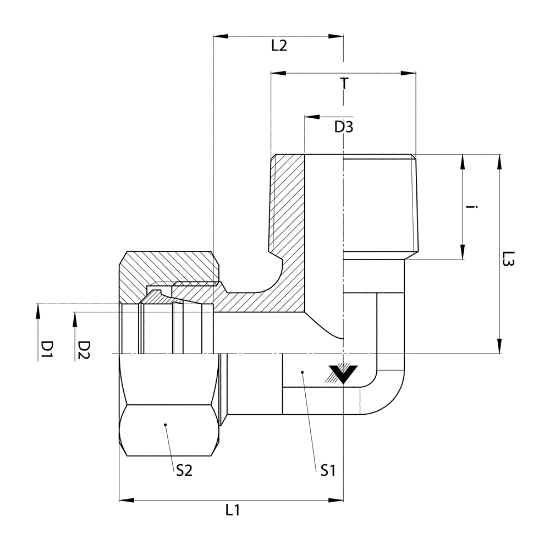

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D7501-E10-04-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7501-E10-04-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Specification	DIN 2353, ISO 8434-1
Series	D7501	Type	Elbow
Shape	90 Degree Angle	Material	Stainless Steel
Cubic Inch Space	1.211	Hex C 1	17 MM
Connection 2 Thread Size	1/4-19	Centerline Length L2	12 MM
Connection 1 Tube Size	Extra Light 10 mm Tube OD	Centerline Lenght M3	15.5 MM
Connection 2 Specification	ISO 7-1, DIN EN 10226-1	Maximum Dynamic Pressure	100 bar
Connection 1 Type	DIN metric tube compression	Connection 2 Type	Male BSPT (R)
Overall Length M1	26.8 MM	Raw Material Type	Stainless Steel Forging
Centerline Length M2	21 MM	Connection 1 Thread Size	M14X1.0
Hex Body	14 MM	Centerline Length L1	26 MM
