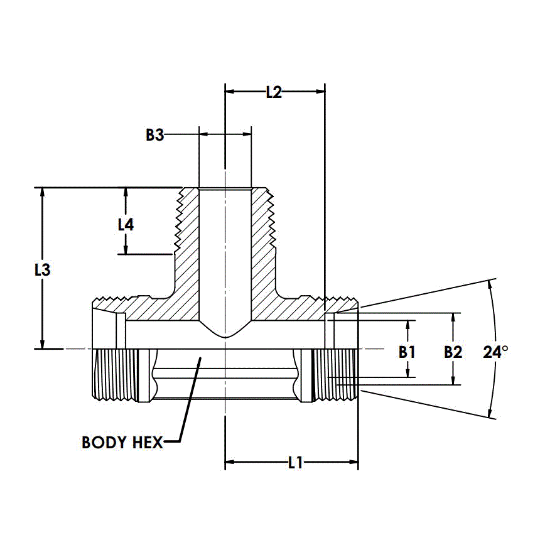

D7601-S16-S16-08-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7601-S16-S16-08-X

Products specifications

Attribute name	Attribute value
Material	Steel	Standard	Prop-65 Warning
Thread Size 2	M24 x 1.5	Series	D7601-X
Connection Type	MBT-MBT-MBSPT (Body Only)	Style	DIN Fitting
Type	Tee	Max. Dynamic Pressure	400 Bar
Weight	0.425 LB	Connection Specification 1	DIN 2353, ISO 8434-1
End Type 3	Male BSPT (R)	Thread Size 1	M24 x 1.5
Thread ID	12 MM	Thread Size 3	1/2-14
End Type 2	Male Metric 24 Degree DIN Seat	Connection Specification 2	DIN 2353, ISO 8434-1
End Type 1	Male Metric 24 Degree DIN Seat	Connection Specification 3	ISO 7-1, DIN EN 10226-1
Plating	Zinc Nickel	Tube Size 2	16 MM
Raw Material Type	Steel Forging	Body Hex	24 MM
Tube Size 1	16 MM
