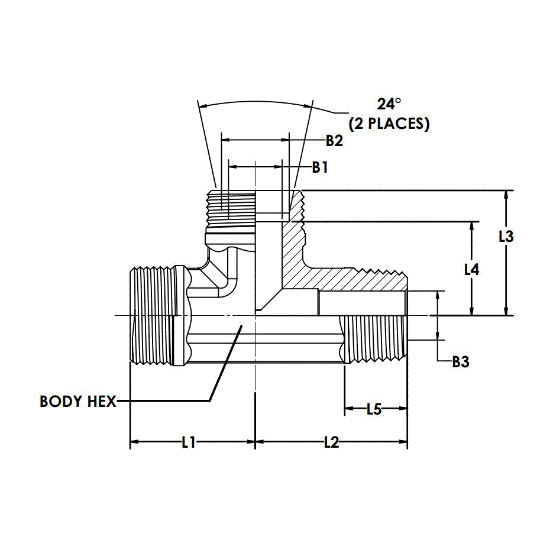

D7605-L10-04-L10-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7605-L10-04-L10-X

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	Prop-65 Warning
Max. Dynamic Pressure	315 Bar	Connection Specification 1	DIN 2353, ISO 8434-1
Thread Size 2	1/4-19	Style	DIN Fitting
Weight	0.117 LB	Series	D7605-X
End Type 3	Male Metric 24 Degree DIN Seat	Body Hex	14 MM
Thread Size 3	M16 x 1.5	Tube Size 1	10 MM
End Type 2	Male BSPT (R)	Connection Specification 3	DIN 2353, ISO 8434-1
End Type 1	Male Metric 24 Degree DIN Seat	Thread Size 1	M16 x 1.5
Thread ID	7 MM	Connection Specification 2	ISO 7-1, DIN EN 10226-1
Tube Size 3	10 MM	Plating	Zinc Nickel
Raw Material Type	Steel Forging
