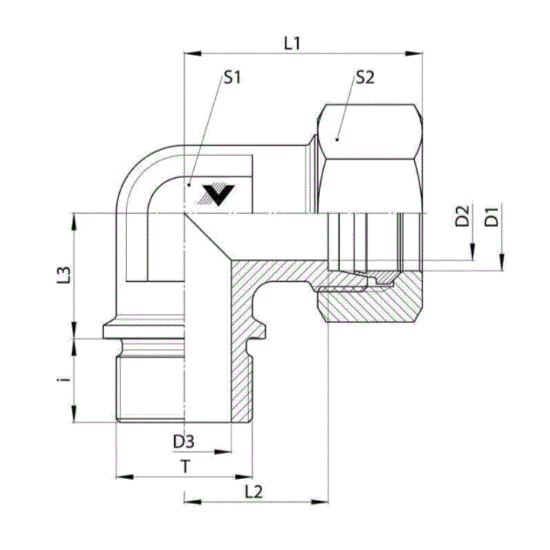

D7801-L42-24-CF

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7801-L42-24-CF

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Cubic Inch Space	29.321	Connection 1 Specification	DIN 2353, ISO 8434-1
Series	D7801-CF	Type	Elbow
Shape	90 Degree Angle	Plating	Zinc Nickel
Connection 1 Type	DIN metric tube compression	Raw Material Type	Steel Forging
Hex Body	50 MM	Connection 1 Tube Size	Light 42 mm Tube OD
Overall Length M1	63 MM	Connection 2 Specification	DIN 3852-2 FORM B
Connection 1 Thread Size	M52X2.0	Maximum Dynamic Pressure	160 bar
Centerline Length L2	22 MM	Connection 2 Type	Male BSPP form B
Hex C 1	60 MM	Centerline Length L1	61 MM
Connection 2 Thread Size	1-1/2-11	Centerline Lenght M3	40 MM
Centerline Length M2	51 MM
