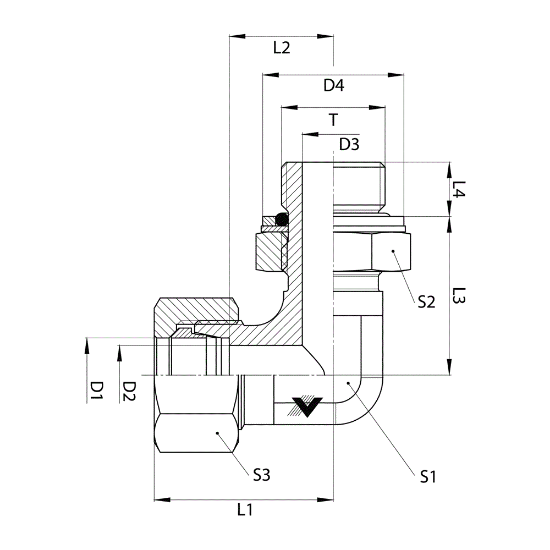

D7801-S20-12-NWO-RR

Brennan D7801-S20-12-NWO-RR | Elbow | Series D7801-NWO-RR | Connection 1 Type DIN metric tube compression | Connection 2 Type Male MBSPP Adjustable ORR

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7801-S20-12-NWO-RR

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90 Degree Angle
Connection 1 Specification	DIN 2353, ISO 8434-1	Type	Elbow
Series	D7801-NWO-RR	Material	Steel
Connection 1 Type	DIN metric tube compression	Connection 1 Tube Size	Heavy 20 mm Tube OD
Connection 2 Specification	ISO 1179, ISO 8434-6, BS 5200	Connection 2 Thread Size	3/4-14
O-Ring/Seal Material	NBR	Connection 2 Type	Male MBSPP Adjustable ORR
Connection 1 Thread Size	M30X2.0	Raw Material Type	Steel Forging
Plating	Zinc Nickel
