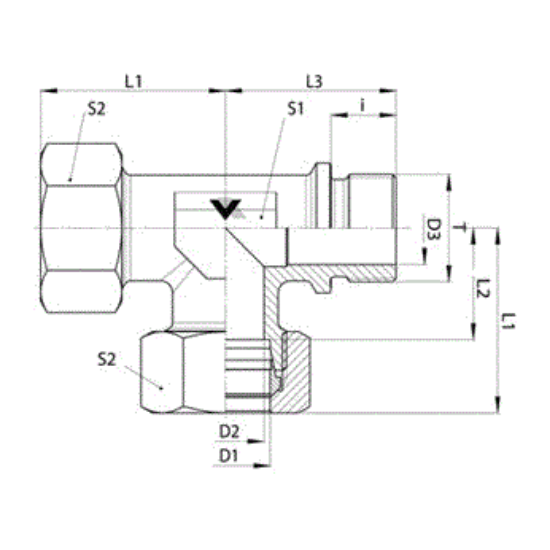

D7804-L28-16-L28-CF-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D7804-L28-16-L28-CF-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size 1	41 MM
Connection Specification 1	DIN 2353, ISO 8434-1	Style	DIN Fitting
Series	D7804-CF	Weight	1.357 LB
Standard	Prop-65 Warning	Thread Size 2	1-11
Max. Dynamic Pressure	160 Bar	End Type 2	Male BSPP Form B
End Type 1	DIN Metric Tube Compression	Tube Size 1	28 MM
Raw Material Type	Stainless Steel Forging	Body Hex	36 MM
Hex Size 2	41 MM	Connection Specification 3	DIN 2353, ISO 8434-1
Thread ID	23 MM	End Type 3	DIN Metric Tube Compression
Thread Size 3	M36 x 2.0	Thread Size 1	M36 x 2.0
Connection Specification 2	DIN 3852-2 Form B	Tube Size 3	28 MM
