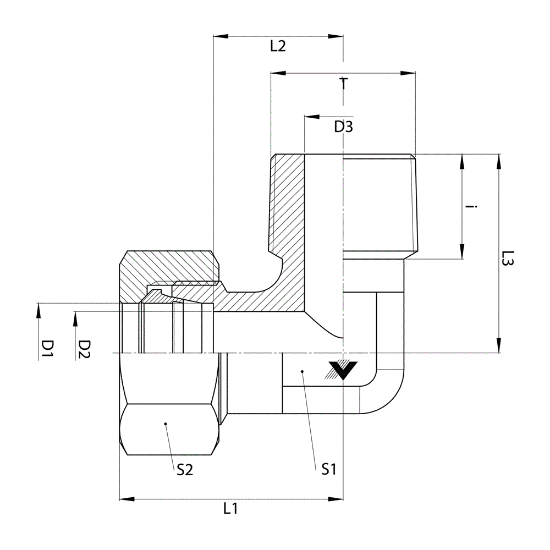

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8501-E04-06

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8501-E04-06

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Cubic Inch Space	0.342	Connection 1 Specification	DIN 2353, ISO 8434-1
Series	D8501	Type	Elbow
Shape	90 Degree Angle	Plating	Zinc Nickel
Maximum Dynamic Pressure	100 bar	Connection 1 Type	DIN metric tube compression
Raw Material Type	Steel Forging	Connection 2 Thread Size	M06X1.0
Centerline Length L1	17 MM	Hex C 1	10 MM
Connection 2 Specification	DIN 158	Centerline Length L2	10 MM
Connection 2 Type	Male Metric Tapered	Centerline Lenght M3	11 MM
Centerline Length M2	15 MM	Hex Body	9 MM
Connection 1 Tube Size	Extra Light 04 mm Tube OD	Overall Length M1	21 MM
Connection 1 Thread Size	M08X1.0
