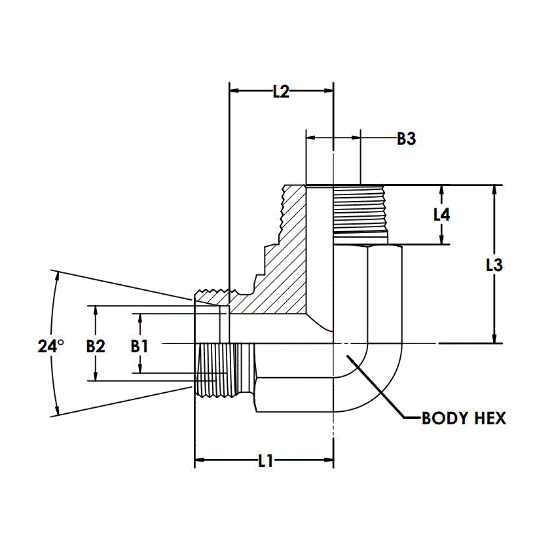

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8501-E04-08-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8501-E04-08-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D8501-X
Material	Stainless Steel	Cubic Inch Space	0.230
Shape	90 Degree Angle	Connection 1 Specification	DIN 2353, ISO 8434-1
Type	Elbow	Centerline Length L2	10 MM
Hex Body	9 MM	Connection 1 Tube Size	Extra Light 04 mm Tube OD
Raw Material Type	Stainless Steel Forging	Connection 2 Specification	DIN 158
Connection 1 Type	Male metric 24 degree DIN Seat	Connection 1 Thread Size	M08X1.0
Overall Length M1	15 MM	Connection 2 Type	Male Metric Tapered
Maximum Dynamic Pressure	100 bar	Centerline Length L1	17 MM
Centerline Length M2	11 MM	Connection 2 Thread Size	M08X1.0
