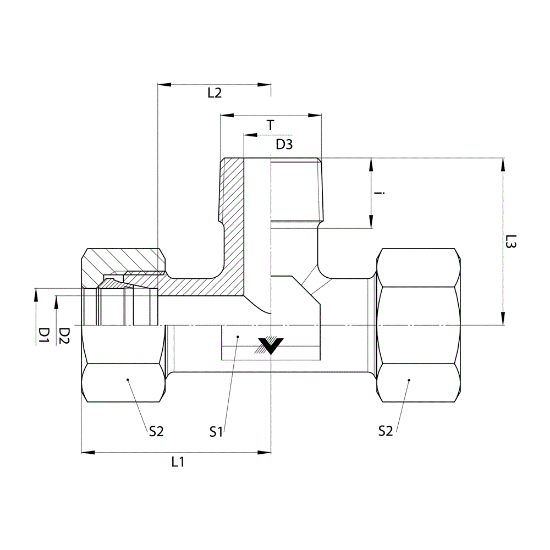

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8601-E08-E08-10-SS-X

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8601-E08-E08-10-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Dynamic Pressure	100 Bar
Weight	0.051 LB	Series	D8601-X
Thread Size 2	M12 x 1.0	Standard	Prop-65 Warning
Connection Specification 1	DIN 2353, ISO 8434-1	Style	DIN Fitting
End Type 1	Male Metric 24 Degree DIN Seat	Connection Specification 2	DIN 2353, ISO 8434-1
End Type 3	Male Metric Tapered	Connection Specification 3	DIN 158
Thread Size 3	M10 x 1.0	Body Hex	12 MM
Tube Size 1	8 MM	Tube Size 2	8 MM
Raw Material Type	Stainless Steel Forging	End Type 2	Male Metric 24 Degree DIN Seat
Thread Size 1	M12 x 1.0	Thread ID	6 MM
