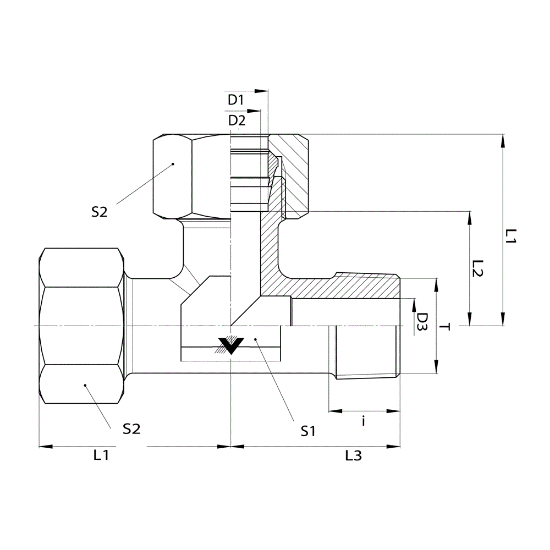

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8605-E06-10-E06

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8605-E06-10-E06

Products specifications

Attribute name	Attribute value
UOM	EA	Style	DIN Fitting
Thread Size 2	M10 x 1.0	Connection Specification 1	DIN 2353, ISO 8434-1
Max. Dynamic Pressure	100 Bar	Hex Size 1	12 MM
Standard	Prop-65 Warning	Weight	0.064 LB
Series	D8605	Thread ID	4.5 MM
Thread Size 3	M10 x 1.0	End Type 1	DIN Metric Tube Compression
Tube Size 1	6 MM	End Type 3	DIN Metric Tube Compression
End Type 2	Male Metric Tapered	Connection Specification 3	DIN 2353, ISO 8434-1
Thread Size 1	M10 x 1.0	Body Hex	9 MM
Raw Material Type	Steel Forging	Plating	Zinc Nickel
Connection Specification 2	DIN 158	Tube Size 3	6 MM
Hex Size 2	12 MM
