D8801-L18-22-NWO-RR

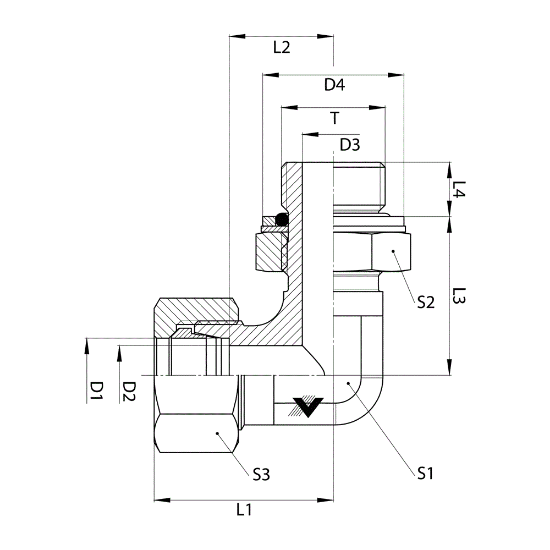

Brennan D8801-L18-22-NWO-RR | Elbow | Series D8801-NWO-RR | Connection 1 Type DIN metric tube compression | Connection 2 Type Male Metric Adjustable ORR

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8801-L18-22-NWO-RR

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Connection 3 Type	ISO 9974	Series	D8801-NWO-RR
Connection 1 Specification	DIN 2353, ISO 8434-1	Type	Elbow
Shape	90 Degree Elbow	O-Ring/Seal Material	NBR
Plating	Zinc Nickel	Connection 1 Type	DIN metric tube compression
Raw Material Type	Steel Forging	Connection 2 Thread Size	M22X1.5
Connection 2 Specification	O-RING AND RETAINING RING	Connection 1 Tube Size	Light 18 mm Tube OD
Connection 1 Thread Size	M26X1.5	Connection 2 Type	Male Metric Adjustable Orr
