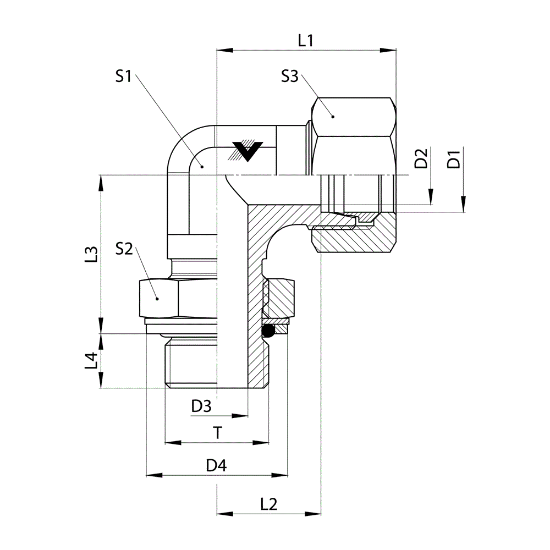

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8801-L35-42-CF-SS-X

Brennan D8801-L35-42-CF-SS-X | Elbow | Series D8801-CF-X | Connection 1 Type Male metric 24 degree DIN Seat | Connection 2 Type Male Metric Form B

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8801-L35-42-CF-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Cubic Inch Space	12.209	Connection 1 Specification	DIN 2353, ISO 8434-1
Series	D8801-CF-X	Type	Elbow
Shape	90 Degree Angle	Connection 1 Tube Size	Light 35 mm Tube OD
Overall Length M1	45 MM	Connection 1 Type	Male metric 24 degree DIN Seat
Centerline Length M2	34.5 MM	Raw Material Type	Stainless Steel Forging
Connection 2 Specification	ISO 9974 FORM B	Hex Body	41 MM
Centerline Length L2	20 MM	Maximum Dynamic Pressure	160 bar
Centerline Length L1	54 MM	Connection 1 Thread Size	M45X2.0
Connection 2 Type	Male Metric Form B	Connection 2 Thread Size	M42X2.0
