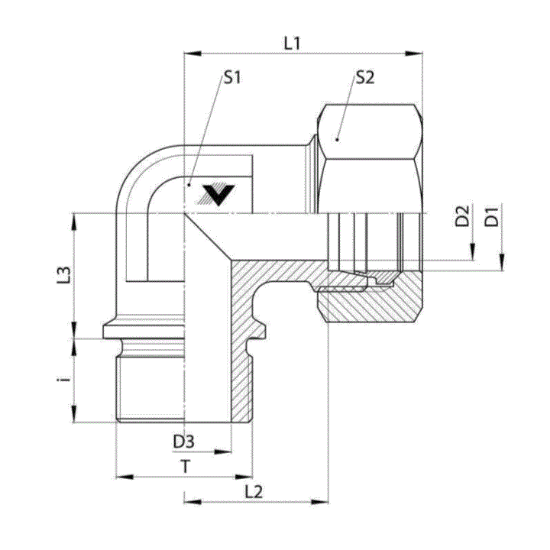

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8801-S30-42-CF-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8801-S30-42-CF-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Cubic Inch Space	20.187	Connection 1 Specification	DIN 2353, ISO 8434-1
Series	D8801-CF	Type	Elbow
Shape	90 Degree Angle	Raw Material Type	Stainless Steel Forging
Connection 1 Thread Size	M42X2.0	Hex Body	41 MM
Connection 2 Specification	ISO 9974 FORM B	Centerline Length M2	49 MM
Maximum Dynamic Pressure	160 bar	Centerline Length L1	54 MM
Centerline Length L2	20 MM	Connection 1 Tube Size	Heavy 30 mm Tube OD
Centerline Lenght M3	35.5 MM	Connection 2 Type	Male Metric Form B
Overall Length M1	63.2 MM	Connection 2 Thread Size	M42X2.0
Hex C 1	50 MM	Connection 1 Type	DIN metric tube compression
