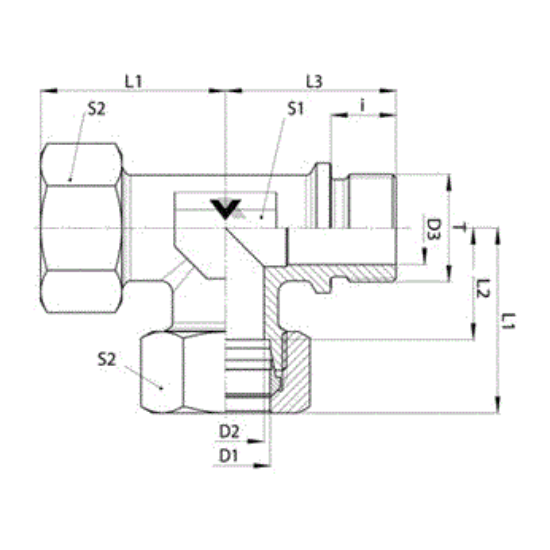

D8804-L22-26-L22-CF-SS

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8804-L22-26-L22-CF-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size 1	36 MM
Series	D8804-CF	Max. Dynamic Pressure	250 Bar
Weight	0.976 LB	Standard	Prop-65 Warning
Connection Specification 1	DIN 2353, ISO 8434-1	Style	DIN Fitting
Thread Size 2	M26 x 1.5	Tube Size 1	22 MM
End Type 3	DIN Metric Tube Compression	Connection Specification 3	DIN 2353, ISO 8434-1
End Type 2	Male Metric Form B	Connection Specification 2	ISO 9974 Form B
Hex Size 2	36 MM	End Type 1	DIN Metric Tube Compression
Thread Size 3	M30 x 2.0	Thread Size 1	M30 x 2.0
Raw Material Type	Stainless Steel Forging	Tube Size 3	22 MM
Thread ID	18 MM	Body Hex	27 MM
