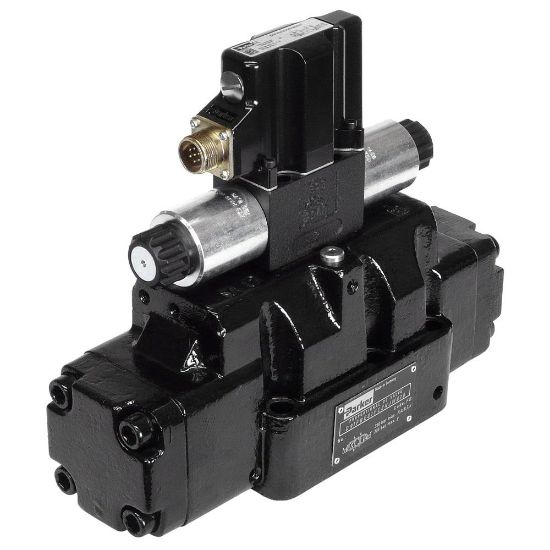

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D91FBE02EC4NM00

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 141 days
Partner Available:	Backordered

SKU D91FBE02EC4NM00

$8,710.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Operation Type	Pilot
Flow Rate	250.0 lpm, 250 lpm	For Fluid Type	Hydraulic Oil
Port Connection	NG25 / CETOP 08	Connection Type	6 + Pe
Material	Cast Iron	Pilot Inlet / Drain Locations	Internal / internal
Minimum Pilot Pressure	30 + T/Y bar	Variation of Opening Point	set to 10 % Command Signal
Pilot Inlet	Internal	Technology	Hydraulics
Media	Hydraulic Oil	Function	3-way
Leak Rate	600.0 ml/min	Maximum Pilot Pressure	350 bar
Hysteresis	< 5 %	Filter Efficiency Rating	ISO 4406; 18/16/13
Application	Industrial Hydraulic	Power Supply Voltage	18...30, Ripple < 5 % eff., Surge Free V
Electronics Type	Onboard	Response Time	100 ms
Maximum Operating Temperature	60 °C	IP Rating	IP65
Valve Type	Proportional DC Valve	Minimum Kinematic Viscosity	20 cSt
Spool Code	E02	Maximum Ambient Temperature	60 °C
Maximum Kinematic Viscosity	400 cSt	Spool Position	Operated In Position A Or B
Maximum Fluid Temperature	60 °C	Mounting Position	Unrestricted
Minimum Fluid Temperature	-25 °C	Minimum Ambient Temperature	-20 °C
Actuation Type	Proportional Solenoid	Product Series	Proportional DC Valve
Signal Input	0 to ±10 V	Seal Material	NBR
Mounting Option	Din 24340 / ISO 4401 / Cetop Rp121 / NFPA	Valve Option	Standard
Minimum Operating Temperature	-20 °C
