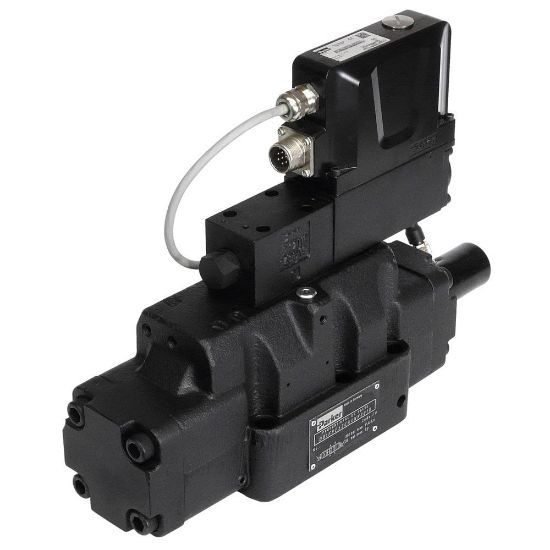

D91FPE52HB1NK00

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU D91FPE52HB1NK00

$15,046.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hysteresis	< 0.1 %
Maximum Pilot Pressure	350 bar	Maximum Flow Rate	1000 lpm
Application	Industrial Hydraulic	Filter Efficiency Rating	ISO 4406; 18/16/13
Pilot Inlet / Drain Locations	Internal/external	For Fluid Type	Hydraulic Oil
Flow Rate	450.0 lpm, 450 lpm	Operation Type	Pilot
Port Connection	NG10 / CETOP 05, NG16 / CETOP 07, NG25 / CETOP 08	Connection Type	6+pe
Technology	Hydraulics	Function	Proportional, 3-way
Material	Cast Iron	Minimum Pilot Pressure	20 bar
Leak Rate	Depending on Spool	Variation of Opening Point	set to 10 % Command Signal
Media	Hydraulic Oil	Pilot Inlet	Internal/External
Mounting Option	Din 24340 / ISO 4401 / Cetop Rp121 / NFPA	Valve Type	Proportional DC Valve
Valve Option	Standard And Regenerative Valve Function	Maximum Ambient Temperature	60 °C
Actuation Type	VCD-Actuator	IP Rating	IP65
Minimum Kinematic Viscosity	20 cSt	Mounting Position	Horizontal Mounting Preferred
Defined Spool Position At Power Down	P-B/A-T	Signal Input	0 to ±10 V
Response Time	19 ms	Spool Code	E52
Maximum Kinematic Viscosity	400 cSt	Pressure Differential	5 Bar
Maximum Fluid Temperature	60 °C	Power Supply Voltage	24 Nominal (Tolerance Range 22 â€¦ 30), Electric Shut-off at < 19, Ripple < 5 % eff., Surge Free V
Minimum Ambient Temperature	-20 °C	Electronics Type	Onboard Electronics
Spool Type	Zerolap	Seal Material	NBR
Minimum Fluid Temperature	-20 °C	Product Series	Proportional DC Valve
