D91VW020B1NJWI5N

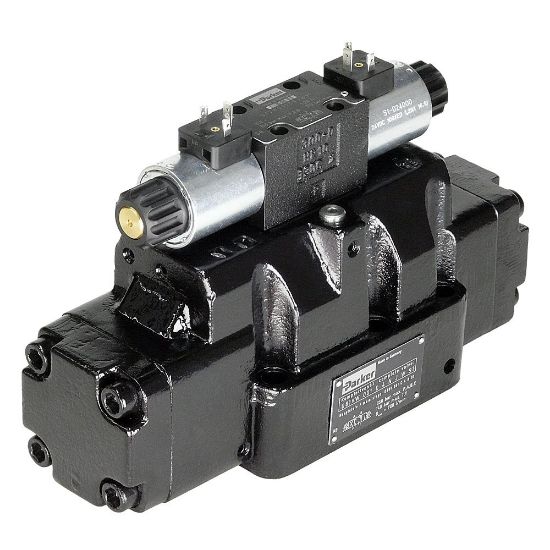

Parker D91VW020B1NJWI5N | Directional Control Valve | Material Cast Iron | Connection Type Connector As Per EN 175301-803 | For Fluid Type Hydraulic Oil

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU D91VW020B1NJWI5N

$4,534.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Operation Type	Pilot
Port Connection	NG25 / CETOP 08	Maximum Flow Rate	700 lpm
Connection Type	Connector As Per En 175301-803	Material	Cast Iron
Pilot Inlet / Drain Locations	Internal/External	For Fluid Type	Hydraulic Oil
Additional Options	Position Control, Start Position Monitored, Side B	Function	3-Way
Maximum Operating Temperature	60 °C	Minimum Operating Temperature	-20 °C
Input Voltage	24 VDC	Solenoid Option	Standard Solenoid Without Options
Seal Material	NBR	Actuation Type	Solenoid
Marking	Standard	Mounting Option	Subplate Mounting
Spool Position	2 Positions, Spring Offset In Position B, Operated In Position A	Product Series	Directional Control Valve
Spool Code	'020	Bore Size	32 mm
