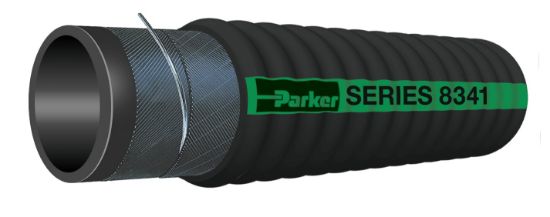

8341-6000 - DAY-LITE® Corrugated Material Handling Suction & Vacuum Hose, Series 8341

Day-Lite Large Corrugated Material Handling Suction & Vacuum Hose incorporates a thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 180°F and 75 psi, Series 8341

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU 8341-6000

$88.11/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	6
Media	Wet Abrasive Powders	Hose Inner Tube Material	Black
Weight	4.41 lb/ft	Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR)
Specifications Met	N/A	Length per Package	100 ft
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Cover Structure	Corrugated
Maximum Operating Pressure	5.2 bar	Maximum Operating Temperature	180 °F
Minimum Bend Radius	18 inch	Minimum Operating Temperature	-40 °C
Outside Diameter	170 mm	Inside Diameter	152.4 mm
Package Type	Coil	Cover Color	Black

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
