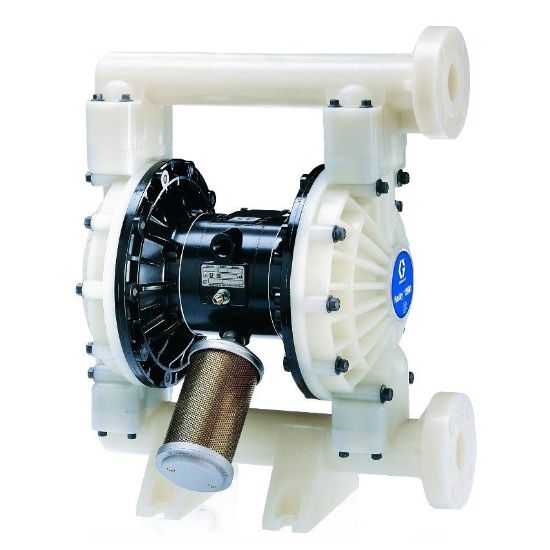

DB5A11

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DB5A11

Products specifications

Attribute name	Attribute value
Type	Pneumatic	Air Exhaust Port Thread Gender	Female
Weight	49 lb	Maximum Flow Rate	100 GPM
Material	PVDF	Ball Material	PTFE
Connection Type	Threaded	Series	1590
Diaphragm Compatible Material	PTFE	Diaphragm Material	PTFE/EPDM 2-Piece
Fluid Outlet Thread Gender	Female	Center Section Material	Aluminum
Fluid Inlet Size	1-1/2 Inch	Fluid Inlet Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Fluid Outlet Size	1-1/2 Inch
Fluid Outlet Thread Type	NPT	Maximum Solid Size	0.1875 Inch
Manifold Configuration	End Port	Air Inlet Thread Type	NPT
Air Inlet Thread Gender	Female	Fluid Inlet Thread Type	NPT
Maximum Operating Temperature	150 deg F	Overall Height	21.8 Inch
Maximum Cycle Rate	200 CPM	Model	Husky
Air Inlet Size	1/2 Inch	Maximum Air Consumption	125 SCFM
Air Exhaust Port Thread Type	NPT
