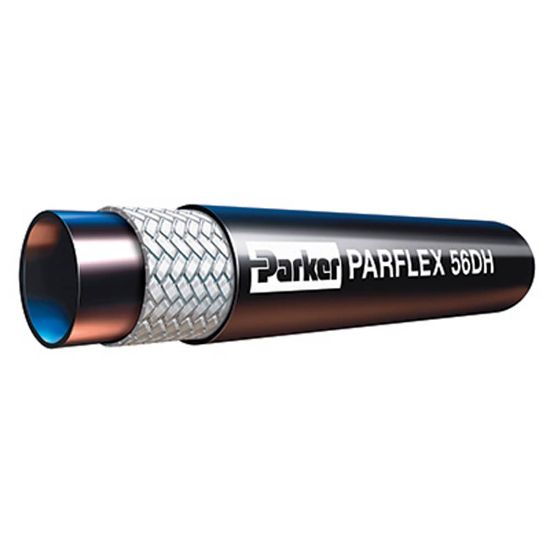

Picture of Diagnostic Hose - 56DH - 56DH-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Diagnostic Hose - 56DH - 56DH-2

Parker 56DH diagnostic hose is a 6,000 psi hose offering the best in class performance. Parflex diagnostic hose reduces the volume of fluid in the system over -4 rubber hose.
Availability:
1821 in stock
Olivette, MO555
TOPEKA, KS522
Decatur, IL349
Peoria, IL256
Kansas City, KS133
Wichita, KS4
SKU 56DH-2
$6.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch).140
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Design Factor4:1MediaWater
Minimum Bend Radius1/2 inchMaximum Operating Pressure6000 psi
Cover MaterialPolyurethaneHose Inner Tube MaterialPolyamide (PA)
Maximum Operating Temperature200 °FApplicationDiagnostics
Size-2Specifications MetMSHA
Hose Reinforcement MaterialAramid FiberCompatible FittingCY Series
Weight0.05 kg/mInside Diameter0.140 inch
Outside Diameter0.320 inch
