Dial-Air Regulators
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

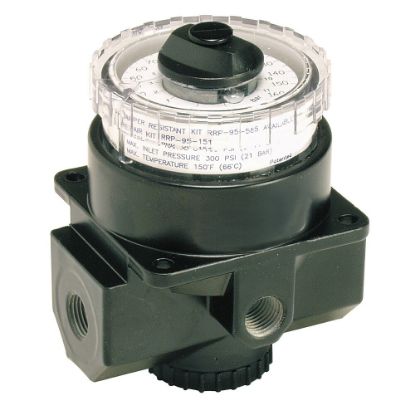

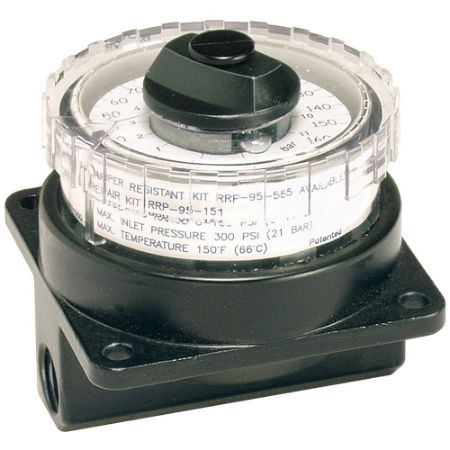

Parker Dial-Air non-modular dial regulators provide a convenient and low-cost method to reduce supplied air pressure to desired outlet pressure. They provide quick response and accurate pressure regulation for the most demanding industrial applications. These regulators utilize a pressure indicating dial face that allows full pressure adjustment in a 270° turn. Dial-Air regulators are generally used in a wide variety of applications where reduced pressure is highly desirable for energy conservation, safety requirements, air circuit control and air instrumentation. These units are an excellent product for panel mount application.
For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. Pressure regulators transform a fluctuating air supply to a relatively constant reduced air pressure within the operating range of the regulator itself.
Markets
• General Industrial
• Automotive
• Factory Automation
Features/Benefits
• Quick response
• Low cost
• Ideally suited for applications where space restrictions are present
Applications
• General Industrial
• Conveyance
• Packaging
• Assembly
Read More...For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. Pressure regulators transform a fluctuating air supply to a relatively constant reduced air pressure within the operating range of the regulator itself.
Markets
• General Industrial
• Automotive
• Factory Automation
Features/Benefits
• Quick response
• Low cost
• Ideally suited for applications where space restrictions are present
Applications
• General Industrial
• Conveyance
• Packaging
• Assembly
| Action | SKU | Availability | Partner Available | Price | UOM | Operation Type | Outlet Pressure Rating | Pressure Regulator Type | Product Type | Pressure Gauge Type | Port Size | Port Size | Pressure Gauge Type | Pressure Regulator Type | Operation Type | Outlet Pressure Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51R125RA | Backordered | Backordered | $244.22/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 2-40 PSI | |
| 51R125RA1 | Backordered | Backordered | $244.22/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 2-40 PSI | |
| 51R126RA | Backordered | Backordered | $244.22/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 5-160 PSI | |
| 52R125RA | Backordered | 1 Limited Stock | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 2-40 PSI | |
| 52R125RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 2-40 PSI | |
| 52R126RA | Backordered | 1 Limited Stock | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 5-160 PSI | |
| 52R126RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 1/4" | 1/4" | None | Relieving | Standard | 5-160 PSI | |
| 52R225RA | Backordered | Backordered | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 3/8" | 3/8" | None | Relieving | Standard | 2-40 PSI | |
| 52R226RA | 2 Limited Stock | 9 in stock | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 3/8" | 3/8" | None | Relieving | Standard | 5-160 PSI | |
| 52R226RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 3/8" | 3/8" | None | Relieving | Standard | 5-160 PSI | |
| 52R325RA | Backordered | Backordered | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 1/2" | 1/2" | None | Relieving | Standard | 2-40 PSI | |
| 52R325RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 1/2" | 1/2" | None | Relieving | Standard | 2-40 PSI | |
| 52R326RA | Backordered | 19 in stock | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 1/2" | 1/2" | None | Relieving | Standard | 5-160 PSI | |
| 52R326RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 1/2" | 1/2" | None | Relieving | Standard | 5-160 PSI | |
| 52R425RA | Backordered | 10 in stock | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 3/4" | 3/4" | None | Relieving | Standard | 2-40 PSI | |
| 52R425RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 3/4" | 3/4" | None | Relieving | Standard | 2-40 PSI | |
| 52R426RA | Backordered | Backordered | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 3/4" | 3/4" | None | Relieving | Standard | 5-160 PSI | |
| 52R426RA1 | Backordered | Backordered | $244.95/each | EA | Standard | 5-160 PSI | Relieving | Semi-Precision | None | 3/4" | 3/4" | None | Relieving | Standard | 5-160 PSI | |

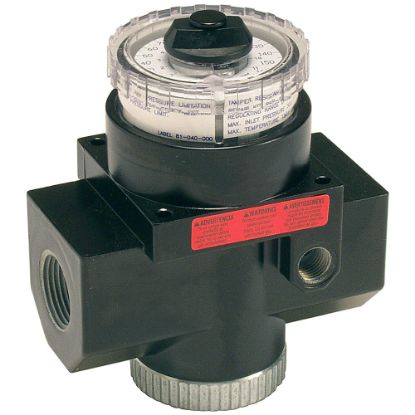

| 53R425RA | Backordered | Backordered | $380.36/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 3/4" | 3/4" | None | Relieving | Standard | 2-40 PSI | |
| 53R425RA1 | Backordered | Backordered | $380.36/each | EA | Standard | 2-40 PSI | Relieving | Semi-Precision | None | 3/4" | 3/4" | None | Relieving | Standard | 2-40 PSI |
