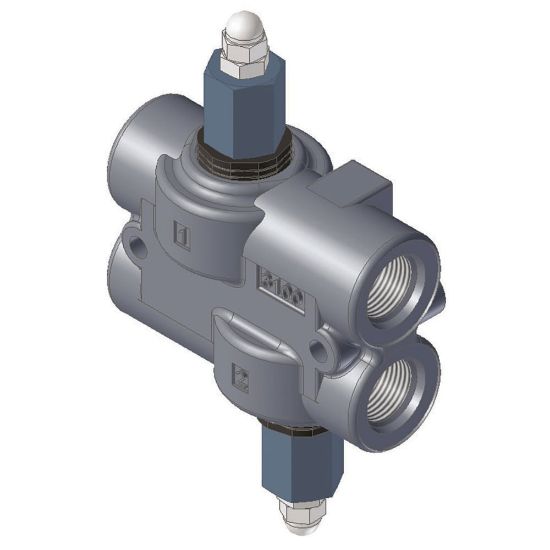

Picture of Differential Area Crossover Relief - DWV Series - DWV-50-2000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Differential Area Crossover Relief - DWV Series - DWV-50-2000

Parker’s DWV Crossover Relief Valve is a fast-acting differential area design that provides pressure overload protection for an actuator where the relieved flow is 30 GPM or less. They are installed between the control valve and actuator.
Availability:
Backordered
SKU DWV-50-2000
$523.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPressure Relief Setting (psi)1250-2000
Adjustment TypeShim AdjustablePort Size1/2"-14 NPT
Body MaterialHigh Strength Cast IronMaximum Operating Temperature+200 °F
Maximum Operating Pressure2000 psiMaximum Flow Rate25 Gal/min
Minimum Operating Temperature-40 °FActuation TypeHydraulic Pressure
Weight5 lbMounting TypeIn-Line
Seal MaterialNitrileDivisionHydraulic Valve Systems Division
Pressure Control Range1250-2000 psiFor Fluid TypeHydraulic Oil
Product resources

Literature and Reference Materials
