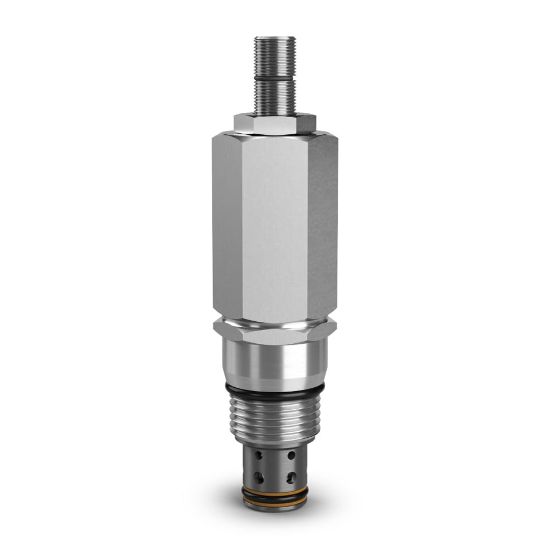

Direct Acting Cross-Over Relief Valves - A04J2MZN

Name: Direct Acting Cross-Over Relief Valves - A04J2MZN
SKU: A04J2MZN

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:

Backordered

SKU A04J2MZN

$243.46

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Flow Rate	32 GAL/MIN, 120 L/MIN
Pressure Control Range	144-5000 PSI, 10-350 BAR	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Mounting Type	Screw in cartridge valve	Cracking Pressure	N/A
Standard Setting Pressure	2900 PSI, 200 BAR	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	350 bar
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Reseat Pressure	n/a	Adjustment Mechanism	Screw
Operating Temperature	-30 to 250 °F	Weight	0.64 lb
Function	Bi-directional	Flow Rate	32 Gal/min
Leak Rate	10	Cavity Size	C10-2
Configuration	Dual Cross-over Relief	Maximum Flow Rate	120 L/min
Installation Torque	37 lb-ft	Maximum Tank Pressure	350 bar
Pressure Control Range	10 to 350 bar	Maximum Pressure Setting	5000 psi
Standard Setting Pressure	200 bar	Pressure Control Sensitivity	493
Maximum Inlet Pressure Rating	350 bar	Port Thread Size	n/a
Cracking Pressure	n/a
