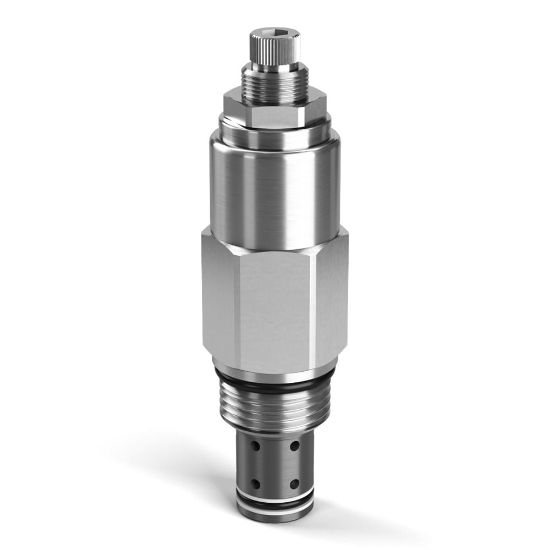

XR101K20 - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU XR101K20

$221.63/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Knob	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Flow Rate	16 GAL/MIN, 60 L/MIN
Pressure Control Range	100-2000 PSI, 6.9-138 BAR	Standard Setting Pressure	1000 PSI, 69 BAR
Maximum Inlet Pressure Rating	3500 PSI, 245 BAR	Seal Material	Nitrile
Body Material	n/a	Installation Torque	16 lb-ft
Maximum Operating Pressure	3500 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3500 psi	Minimum Operating Temperature	-34 °C
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Knob	Function	Bi-directional
Cavity Size	C10-2	Configuration	Dual Cross-over Relief
Port Thread Size	n/a	Flow Rate	60 L/min
Maximum Flow Rate	60 L/min	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Weight	0.58 lb	Standard Setting Pressure	69 bar
Maximum Pressure Setting	138 bar	Cracking Pressure	N/A psi
Pressure Control Range	6.9-138 bar	Pressure Control Sensitivity	23 per turn bar
Reseat Pressure	80% of pressure setting	Leak Rate	0.66 @ 75% Crack Pressure cm3/min
Maximum Tank Pressure	245 bar
