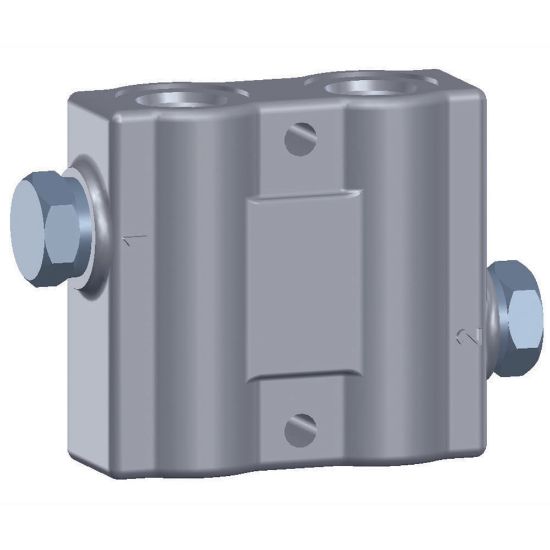

Picture of Direct Acting Crossover Relief - DXV Series - DXV-75-1300

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Crossover Relief - DXV Series - DXV-75-1300

Parker’s DXV Crossover Relief Valve is a fast, direct acting design that provides pressure overload protection for an actuator where the relieved flow is 10 GPM or less.
Availability:
Backordered
SKU DXV-75-1300
$313.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size3/4" NPT
Pressure Relief Setting (psi)900-1300Adjustment TypeShim Adjustable
Body MaterialHigh Strength Cast IronPressure Control Range900-1300 psi
Maximum Operating Pressure2000 psiMaximum Flow Rate10 Gal/min
Minimum Operating Temperature-40 °FActuation TypeHydraulic Pressure
Mounting TypeIn-LineSeal MaterialNitrile
Maximum Operating Temperature+200 °FConnection Size3/4"
Weight4 lbFor Fluid TypeHydraulic Oil
Connection TypeNPTDivisionHydraulic Valve Systems Division
Product resources

Literature and Reference Materials
