Direct Acting Pressure Reducing Relieving Valves - PR103K12V

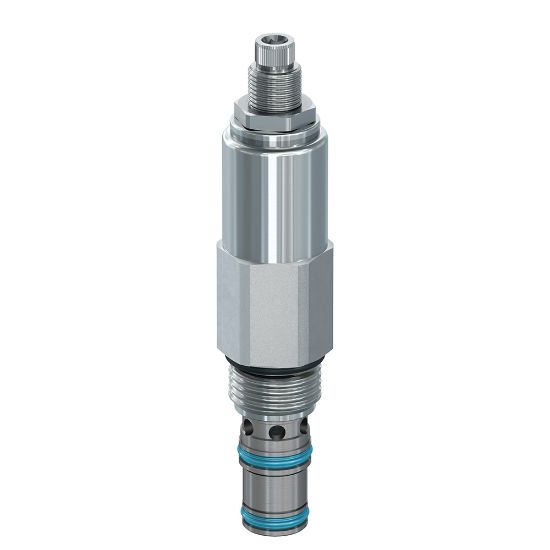

Name: Direct Acting Pressure Reducing Relieving Valves - PR103K12V
SKU: PR103K12V

Parker’s direct acting reducing & relieving valves are used in intermittent duty applications where specific functions require reduced and regulated pressure. Capable of flows up to 56 lpm (13 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU PR103K12V

$79.39

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Flow Rate	15 GAL/MIN, 56 L/MIN	Seal Material	Fluorocarbon
Pressure Control Range	570-1200 PSI, 39.3-83 BAR	Adjustment Mechanism	Knob
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	56 L/min
Maximum Pressure Setting	1200 psi	Adjustment Mechanism	Knob
Pressure Control Sensitivity	11.4 per turn bar	Flow Rate	56 L/min
Body Material	n/a	Maximum Operating Temperature	+204 °C
Installation Torque	50-56 Nm	Weight	0.23 kg
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	C10-3
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Minimum Operating Temperature	-15 °F	Valve Material	All parts steel. All operating parts hardened steel.
Mounting Type	Screw in cartridge valve	Division	Hydraulic Systems Division
Operation Type	Automatic	Maximum Pressure Differential	1000 psi
Pressure Control Range	39.3-83 bar	Configuration	Pressure Reducing/Relieving
Maximum Operating Pressure	3000 psi	Maximum Inlet Pressure Rating	210 bar
Function	Direct Acting	Maximum Drain Flow Rate	0.03 Gal/min
Maximum Tank Pressure	124 bar	Actuation Type	Pressure Sensing
Seal Material	Fluorocarbon	Standard Setting Pressure	41.4 bar
