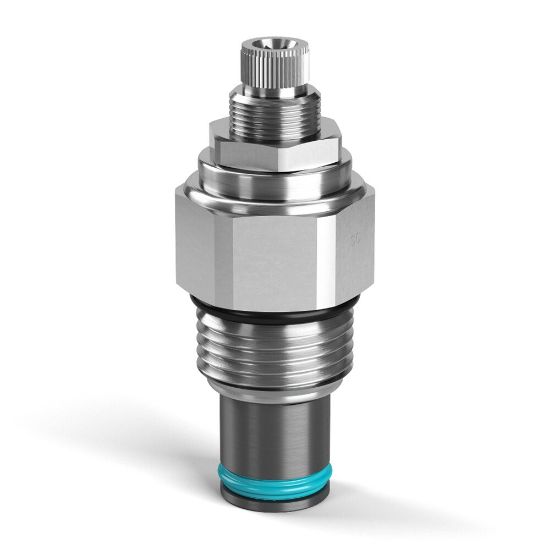

RDH101S50 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	105 in stock

SKU RDH101S50

$59.04/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Pressure Control Range	200-5000 PSI, 13.8-350 BAR	Flow Rate	0.5 GAL/MIN, 1.9 L/MIN
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Weight	0.18 kg	Function	Direct Acting
Configuration	Pressure Relief	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Screw
Wire Mesh Screen Included	n/a	Cavity Size	C10-2
Maximum Tank Pressure	350 bar	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	380 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Installation Torque	37-41 lb-ft
Maximum Operating Pressure	380 bar	Flow Rate	0.5 Gal/min
Maximum Flow Rate	0.5 Gal/min	Standard Setting Pressure	172.4 bar
Pressure Control Sensitivity	1910 per turn psi	Maximum Pressure Setting	350 bar
Pressure Control Range	200-5000 psi	Reseat Pressure	90% of pressure setting
Leak Rate	5 @ 75% Crack Pressure drops/min
