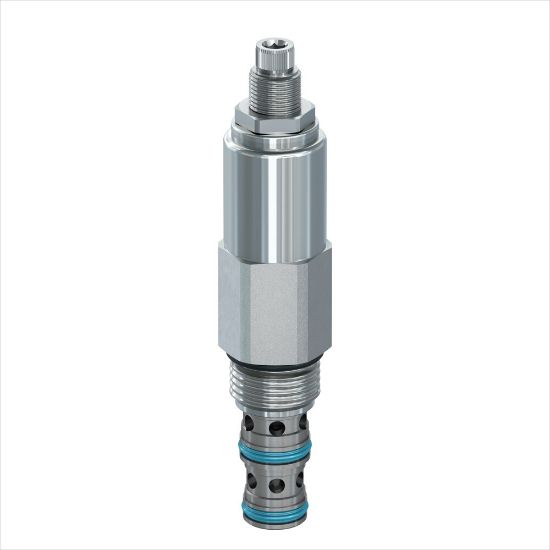

Direct Acting Sequence Valve - SV103K06

Name: Direct Acting Sequence Valve - SV103K06
SKU: SV103K06

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU SV103K06

$131.59

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Seal Material	D-Ring (Standard)	Sealed Pilot Included	No
Flow Rate	15 GAL/MIN, 56 L/MIN	Pressure Control Range	100-600 PSI, 6.9-42 BAR
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Pilot Location	Internal
Pressure Control Sensitivity	6.6 per turn bar	Maximum Pressure Setting	42 bar
Sealed Pilot Included	No	Actuation Type	Pressure Sensing
Weight	0.45 kg	Drain Option	External
Standard Setting Pressure	300 psi	Minimum Operating Temperature	-37 °C
Pressure Control Range	100-600 psi	Maximum Inlet Pressure Rating	3600 psi
Configuration	Normally Closed	Seal Material	D-Ring (Standard)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-37 to +93 °C
Maximum Operating Temperature	+93 °C	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Installation Torque	37-41 lb-ft
Cavity Size	C10-3	Division	Hydraulic Systems Division
Function	Direct Acting Sequence	Maximum Operating Pressure	3600 psi
Mounting Type	Screw in cartridge valve	Operation Type	Automatic
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Maximum Flow Rate	56 L/min
Body Material	n/a	Flow Rate	56 L/min
Maximum Tank Pressure	3600 psi	Adjustment Mechanism	Knob
For Fluid Type	Mineral-based or synthetic hydraulic fluids
