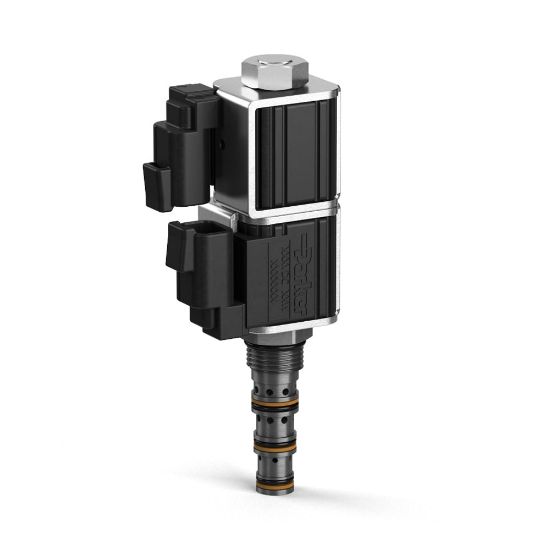

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GP0253V - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU GP0253V

$203.51/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Override Functionality	N/A	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Configuration	Floating Center	Flow Rate	2.7, 4 GAL/MIN, 10, 15 L/MIN
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Weight	0.15 kg
Override Functionality	n/a	Maximum Operating Pressure	350 bar
Maximum Inlet Pressure Rating	350 bar	Operation Type	Solenoid Operated
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C08-4	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Frequency	100-400 Hz
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Configuration	Floating Center	Coil Type	1/2" Super Coil
Response Time	50 ms	Maximum Tank Pressure	3000 psi
Function	Proportional Directional Control	Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min
Hysteresis	Less than 6%	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Variation of Opening Point	25% - 30% of Input Signal	Current	1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A
Flow Rate	2.7, 4 Gal/min	Maximum Flow Rate	2.7, 4 Gal/min
Power Consumption	14, 19 W
