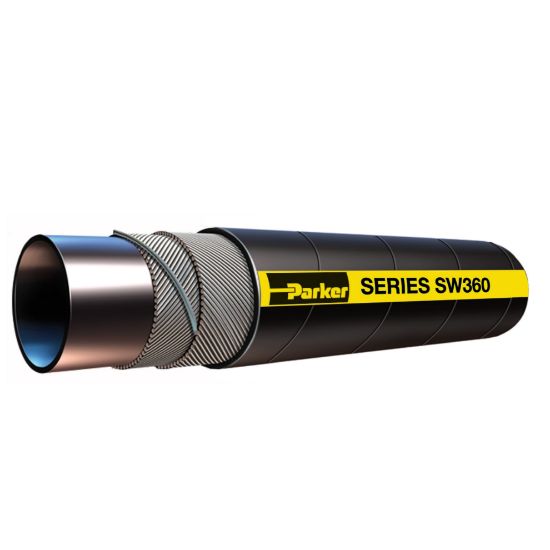

SW360-2000 - DRAGON BREATH® HOT AIR HOSE, SERIES SW360

Dragon Breath® Hot Air Hose is designed for hot air transfer in dry material loading/unloading applications to 350°F and 200 psi, Series SW360

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	177 in stock

SKU SW360-2000

$30.72/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	200	Design Factor	4:1
Length per Package	100 ft	Cover Structure	Wrapped
Minimum Operating Temperature	-40 °F	Cover Color	Black
Maximum Operating Pressure	13.8 bar	Vacuum Pressure Rating	Full
Package Type	Coil	Minimum Bend Radius	152.4 mm
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Maximum Operating Temperature	350 °F
Media	Air (Hot Air)	Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	50.8 mm	Weight	1.08 lb
Hose Inner Tube Material	Black	Outside Diameter	63.5 mm
Cover Material	Ethylene Propylene Diene Monomer (EPDM)
