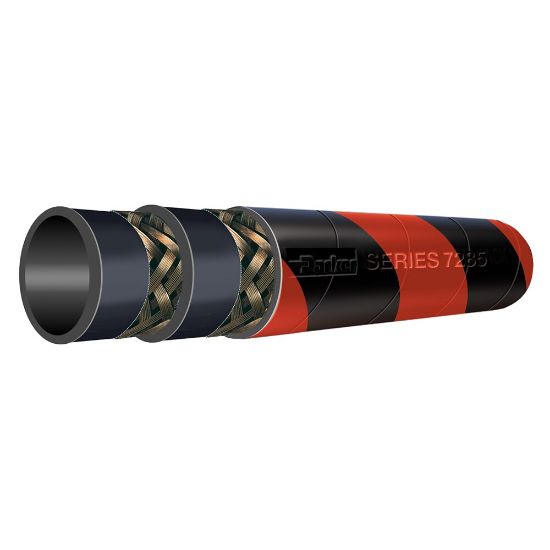

Picture of 7285-1002 - DRAGON BREATH® II Barber Pole Steam Hose, Series 7285

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7285-1002 - DRAGON BREATH® II Barber Pole Steam Hose, Series 7285

Dragon Breath® II Barber Pole Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7285
Availability:
59 in stock
Joplin, MO50
Olivette, MO9
Partner Available:173 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 7285-1002
$19.41/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1
Minimum Operating Temperature-40 °FMediaSteam
Cover MaterialEthylene Propylene Diene Monomer (EPDM)Inside Diameter25.4 mm
Weight1.21 kg/mMinimum Bend Radius12 inch
Specifications MetISO 6134, Type 2Hose Reinforcement MaterialMultiple Braids of Wire
Maximum Operating Temperature450 °F (Superheated Steam)Cover ColorBlack & Red
Outside Diameter39.3 mmHose Inner Tube MaterialChlorobutyl
Maximum Operating Pressure18 bar
Product resources

Literature and Reference Materials
