DU2911

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DU2911

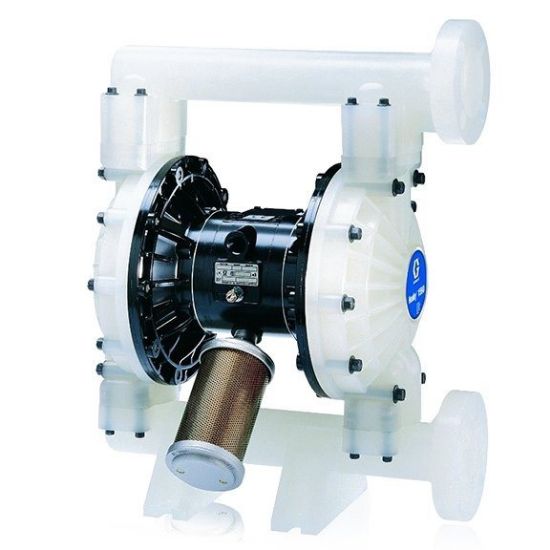

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Features

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
Offered in ATEX configuration.
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Maximum Flow Rate	100 GPM	Ball Material	PTFE
Weight	49 lb	Series	1590
Fluid Outlet Size	1-1/2 Inch	Diaphragm Compatible Material	PTFE
Diaphragm Material	PTFE/EPDM 2-Piece	Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Fluid Inlet Thread Gender	Female
Fluid Inlet Size	1-1/2 Inch	Air Exhaust Port Size	3/4 Inch
Maximum Cycle Rate	200 CPM	Maximum Air Consumption	125 SCFM
Maximum Solid Size	0.1875 Inch	Fluid Outlet Thread Type	NPT
Manifold Configuration	End Port	Fluid Outlet Thread Gender	Female
Center Section Material	Stainless Steel	Fluid Inlet Thread Type	NPT
Model	Husky	Air Inlet Size	1/2 Inch
Maximum Operating Temperature	150 deg F	Air Exhaust Port Thread Type	NPT
