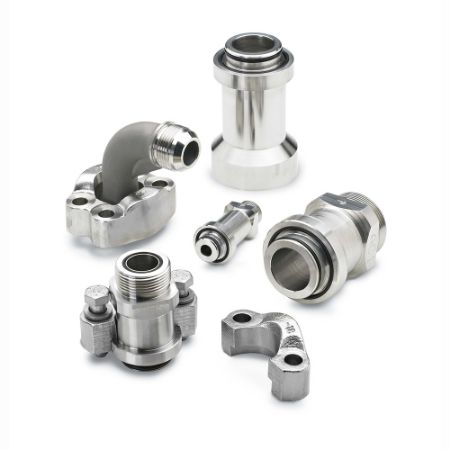

Dual Seal Subsea Flange Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s innovative Dual Seal Flange Adapters improve the reliability of high-vibration, high-shock hydraulic four-bolt connections in critical oil and gas applications. Incorporating both radial and face seal technologies, which reduces the potential for system leakage and air or water ingression caused by side loading of traditional flange face seal connections.
Markets:
• Oil & Gas
Features/Benefits:
• NACE (National Association for Corrosion Engineers) MR0175 Compliant, and tested to 1 million impulse cycles for proven reliability.
• Designed to conform to bolt thread and bolt pattern dimensions of ISO 6162-2 or SAE J518 Code 62.
• Over 28 port configurations available: SAE Straight Thread, Triple-Lok, Seal-Lok, Pipe, Weld Socket and Plugs.
• Available in 316/316L stainless steel with full heat code traceability in sizes ½”, 1” and 1 ½” with working pressures up to 7500 psi and 515 bar
Applications:
• Subsea
• BOP Stacks
Read More...Markets:
• Oil & Gas
Features/Benefits:
• NACE (National Association for Corrosion Engineers) MR0175 Compliant, and tested to 1 million impulse cycles for proven reliability.
• Designed to conform to bolt thread and bolt pattern dimensions of ISO 6162-2 or SAE J518 Code 62.
• Over 28 port configurations available: SAE Straight Thread, Triple-Lok, Seal-Lok, Pipe, Weld Socket and Plugs.
• Available in 316/316L stainless steel with full heat code traceability in sizes ½”, 1” and 1 ½” with working pressures up to 7500 psi and 515 bar
Applications:
• Subsea
• BOP Stacks
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection Style | Flange Size (inch) | Connection Tube O.D. (inch) | Connection Thread Size (inch) | Body Material | O-Ring Material | Specifications Met | Maximum Dynamic Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 FHQ4O-SS | Backordered | Backordered | $279.36/each | EA | Straight | Male NPTF | 1 | na | 1-11 1/2 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 5400 psi | |
| 16 G5HQ4O-SS | Backordered | Backordered | $293.74/each | EA | Straight | Female SAE-ORB | 1 | na | 1 5/16-12 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 3500 psi | |
| 16 GHQ4O-SS | Backordered | Backordered | $306.77/each | EA | Straight | Female NPTF | 1 | na | 1-11 1/2 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 3600 psi | |
| 16 PQ4O-SS | Backordered | Backordered | $80.01/each | EA | Plug | na | 1 | na | na | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 7500 psi | |
| 16 W7HQ4O-SS | Backordered | Backordered | $313.33/each | EA | Straight | Female Socket Weld Pipe | 1 | na | 1 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 7500 psi | |
| 16 XHQ4O-SS | Backordered | Backordered | $248.50/each | EA | Straight | Male 37° Flare | 1 | 1 | na | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 4800 psi | |
| 24 FHQ4O-SS | Backordered | Backordered | $468.65/each | EA | Straight | Male NPTF | 1 1/2 | na | 1 1/2-11 1/2 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 3600 psi | |
| 24 GHQ4O-SS | Backordered | Backordered | $464.71/each | EA | Straight | Female NPTF | 1 1/2 | na | 1 1/2-11 1/2 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 3000 psi | |
| 24 PQ4O-SS | Backordered | Backordered | $105.31/each | EA | Plug | na | 1 1/2 | na | na | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 7500 psi | |
| 24 W7HQ4O-SS | Backordered | Backordered | $525.27/each | EA | Straight | Female Socket Weld Pipe | 1 1/2 | na | 1 1/2 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 7500 psi | |
| 24 XHQ4O-SS | Backordered | 2 Limited Stock | $429.08/each | EA | Straight | Male 37° Flare | 1 1/2 | 1 1/2 | na | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 3600 psi | |
| 8 FHQ4O-SS | Backordered | Backordered | $152.97/each | EA | Straight | Male NPTF | 1/2 | na | 1/2-14 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 7200 psi | |
| 8 G5HQ4O-SS | Backordered | Backordered | $141.03/each | EA | Straight | Female SAE-ORB | 1/2 | na | 3/4-16 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 5000 psi | |
| 8 GHQ4O-SS | Backordered | Backordered | $144.54/each | EA | Straight | Female NPTF | 1/2 | na | 1/2-14 | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 6000 psi | |
| 8 XHQ4O-SS | Backordered | Backordered | $137.05/each | EA | Straight | Male 37° Flare | 1/2 | 1/2 | na | Stainless Steel | 90 Durometer Nitrile | NACE MR0175, ISO 6162-2 and SAE J518 Code 62 | 7200 psi |
