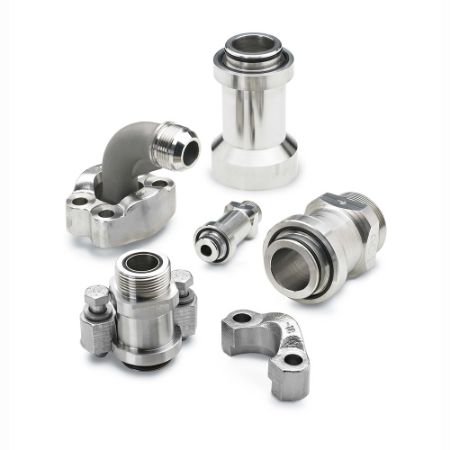

Dual Seal Subsea Flange Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s innovative Dual Seal Flange Adapters improve the reliability of high-vibration, high-shock hydraulic four-bolt connections in critical oil and gas applications. Incorporating both radial and face seal technologies, which reduces the potential for system leakage and air or water ingression caused by side loading of traditional flange face seal connections.

Markets:
• Oil & Gas

Features/Benefits:
• NACE (National Association for Corrosion Engineers) MR0175 Compliant, and tested to 1 million impulse cycles for proven reliability.
• Designed to conform to bolt thread and bolt pattern dimensions of ISO 6162-2 or SAE J518 Code 62.
• Over 28 port configurations available: SAE Straight Thread, Triple-Lok, Seal-Lok, Pipe, Weld Socket and Plugs.
• Available in 316/316L stainless steel with full heat code traceability in sizes ½”, 1” and 1 ½” with working pressures up to 7500 psi and 515 bar

Applications:
• Subsea
• BOP Stacks

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Shape	Connection Style	Flange Size (inch)	Connection Tube O.D. (inch)	Connection Thread Size (inch)	Body Material	O-Ring Material	Specifications Met	Maximum Dynamic Pressure
16 FHQ4O-SS	Backordered	Backordered	$279.36/each	EA	Straight	Male NPTF	1	na	1-11 1/2	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	5400 psi
16 G5HQ4O-SS	Backordered	Backordered	$293.74/each	EA	Straight	Female SAE-ORB	1	na	1 5/16-12	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	3500 psi
16 GHQ4O-SS	Backordered	Backordered	$306.77/each	EA	Straight	Female NPTF	1	na	1-11 1/2	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	3600 psi
16 PQ4O-SS	Backordered	Backordered	$80.01/each	EA	Plug	na	1	na	na	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	7500 psi
16 W7HQ4O-SS	Backordered	Backordered	$313.33/each	EA	Straight	Female Socket Weld Pipe	1	na	1	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	7500 psi
16 XHQ4O-SS	Backordered	Backordered	$248.50/each	EA	Straight	Male 37° Flare	1	1	na	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	4800 psi
24 FHQ4O-SS	Backordered	Backordered	$468.65/each	EA	Straight	Male NPTF	1 1/2	na	1 1/2-11 1/2	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	3600 psi
24 GHQ4O-SS	Backordered	Backordered	$464.71/each	EA	Straight	Female NPTF	1 1/2	na	1 1/2-11 1/2	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	3000 psi
24 PQ4O-SS	Backordered	Backordered	$105.31/each	EA	Plug	na	1 1/2	na	na	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	7500 psi
24 W7HQ4O-SS	Backordered	Backordered	$525.27/each	EA	Straight	Female Socket Weld Pipe	1 1/2	na	1 1/2	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	7500 psi
24 XHQ4O-SS	Backordered	2 Limited Stock	$429.08/each	EA	Straight	Male 37° Flare	1 1/2	1 1/2	na	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	3600 psi
8 FHQ4O-SS	Backordered	Backordered	$152.97/each	EA	Straight	Male NPTF	1/2	na	1/2-14	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	7200 psi
8 G5HQ4O-SS	Backordered	Backordered	$141.03/each	EA	Straight	Female SAE-ORB	1/2	na	3/4-16	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	5000 psi
8 GHQ4O-SS	Backordered	Backordered	$144.54/each	EA	Straight	Female NPTF	1/2	na	1/2-14	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	6000 psi
8 XHQ4O-SS	Backordered	Backordered	$137.05/each	EA	Straight	Male 37° Flare	1/2	1/2	na	Stainless Steel	90 Durometer Nitrile	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	7200 psi
