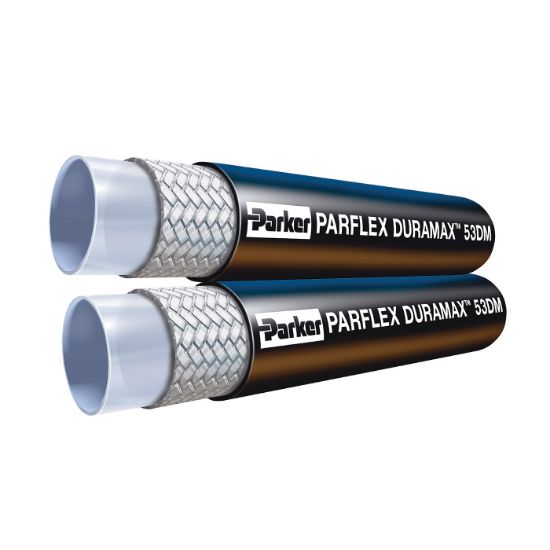

53DM-6-6 - DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM

Name: 53DM-6-6 - DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM
SKU: 53DM-6-6
Price: 18.54 USD
Availability: InStock

Parker 100R18 compliant hose, 53DM/538DM low temperature hydraulic hose, features exceptional flexibility with temperatures as low as -70°F. Single or bonded hose assemblies.

Availability:

281 in stock

Decatur, IL	200
Kansas City, KS	60
Peoria, IL	21

Partner Available:

1959 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 53DM-6-6

$18.54/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Hose Style	Natural, Twin Line	Maximum Operating Pressure	207 bar
Design Factor	4:1	Size	-6
Inside Diameter	10 mm	Maximum Operating Temperature	212 °F
Compatible Fitting	56 Series	Hose Reinforcement Material	Fiber
Minimum Bend Radius	51 mm	Weight	0.22 lb/ft
Media	Lubricants (Oils)	Hose Inner Tube Material	Copolyester
Cover Material	Copolyester	Outside Diameter	33.4 mm
Specifications Met	SAE J517 and 100R18	Minimum Operating Temperature	-57 °C
