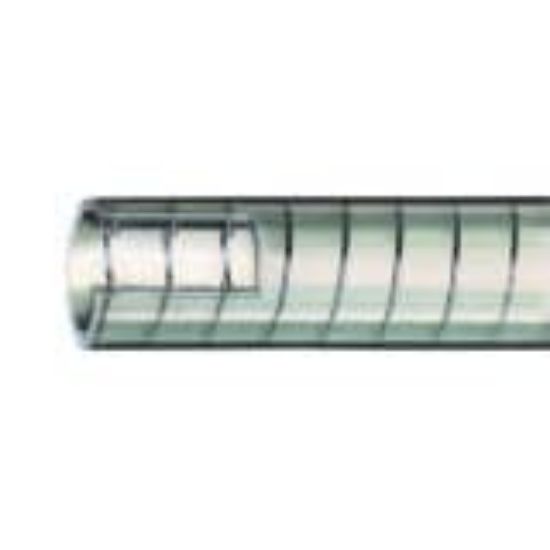

7570-2500 - DYNAFLEX® PVC Clear Suction Hose, Series 7570

Note: This product is no longer available - please contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	8 in stock

SKU 7570-2500

$10.36/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2-1/2
Maximum Working Pressure (psi)	57	Media	Air
Specifications Met	FDA	Package Type	Coil
Length per Package	100	Hose Inner Tube Material	Clear
Maximum Operating Temperature	140	Minimum Bend Radius	10
Cover Color	Transparent	Cover Material	PVC
Cover Structure	Smooth	Minimum Operating Temperature	14
Weight	1.21	Inside Diameter	2-1/2
Design Factor	3:1	Outside Diameter	2.9
Maximum Operating Pressure	40 to 80	Hose Reinforcement Material	Wire Helix
Vacuum Pressure Rating	25

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
