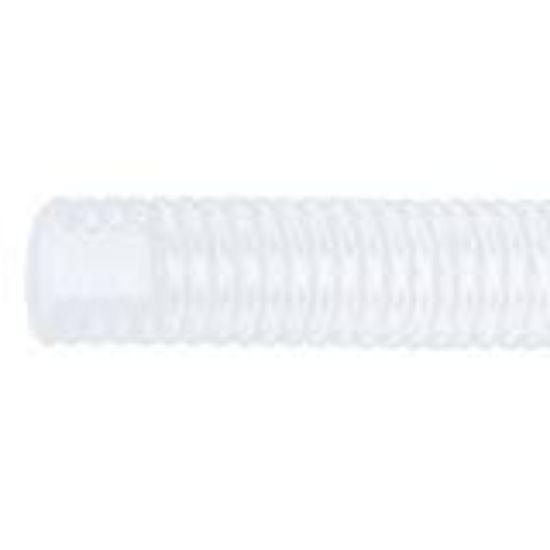

7563-1000 - DYNAFLEX® PVC Corrugated Clear Suction Hose, Series 7563

Name: 7563-1000 - DYNAFLEX® PVC Corrugated Clear Suction Hose, Series 7563
SKU: 7563-1000
Availability: InStock

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

562 in stock

Olivette, MO

562

Partner Available:

52 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7563-1000

POR

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	55
Hose I.D. (inch)	1	Minimum Operating Temperature	5
Minimum Bend Radius	2	Specifications Met	FDA
Package Type	Coil	Length per Package	100
Hose Inner Tube Material	Clear	Maximum Operating Pressure	55
Maximum Operating Temperature	140	Inside Diameter	1
Cover Color	Transparent	Cover Material	PVC
Weight	0.13	Outside Diameter	1.220
Design Factor	3:1	Cover Structure	Corrugated
Media	Dry Abrasive Powders (Debris)	Hose Reinforcement Material	PVC Helix
Vacuum Pressure Rating	24

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
